Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

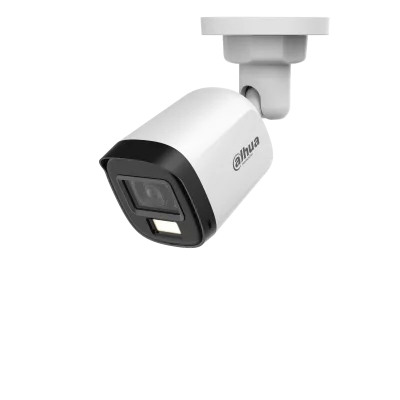

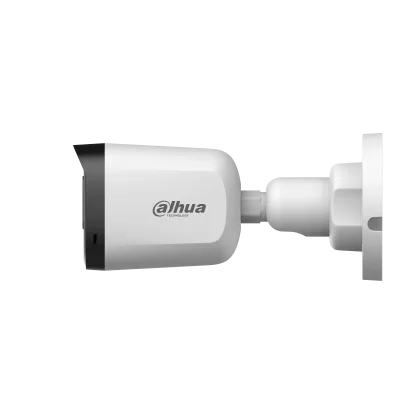

2MP Smart Dual Light HDCVI Fixed-focal Bullet Camera > Max. 30 fps@1080p. > Smart Dual Light. > 30 m illumination distance. > 3.6 mm fixed lens (2.8 mm,6 mm optional). > CVI/CVBS/AHD/TVI switchable. > IP67, 12 VDC.
Teknik özellikler
| Image Sensor | 2 MP CMOS |
|---|---|
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.02 [email protected] (Color, 30 IRE); 0.002 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | IR: 30 m (98.43 ft); Warm light: 20 m (65.62 ft) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Warm light);2 (IR light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: H: 100°; V: 54°; D: 117° 3.6 mm: H: 80°; V: 43°; D: 94° 6 mm: H: 43°; V: 24°; D: 50° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.8 m (2.62 ft) 6 mm: 2.4 m (7.87 ft) |
| Video Frame Rate | CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; DWDR |
| WDR | DWDR |
| White Balance | Auto;Area white balance |
| Gain Control | Auto;Manual |
| Noise Reduction | 2D NR |
| Illumination Mode | Smart IR&WL; WL Mode; IR Mode |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max 3.3 W (12 VDC, LED on) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Casing Material | Plastic |
| Product Dimensions | 146.1 mm × 70.0 mm × 69.8 mm (5.75" × 2.76" × 2.75") |
| Net Weight | 0.15 kg (0.33 lb) |
| Gross Weight | 0.20 kg (0.44 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
