Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

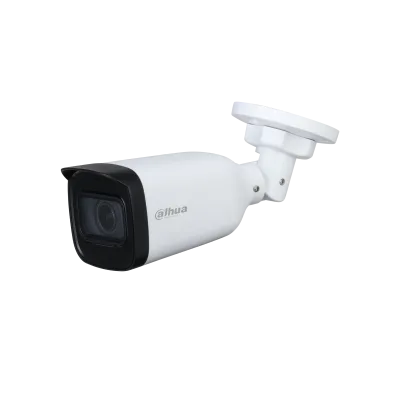

5MP HDCVI IR Bullet Camera * The parameters and datasheets below can only be applied to A51-S2 series. * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version. > Max. 25 fps@5MP (16:9 video output) > CVI/CVBS/AHD/TVI switchable > 2.7 mm–12 mm motorized lens > Max. IR length 40 m; Smart IR > IP67; DC12V
Teknik özellikler
| Image Sensor | 1/2.7 inch CMOS |
|---|---|
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pixel | 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.01 Lux/F1.6; 30IRE; 0 Lux IR on |
| Illumination Distance | 40 m (131.2 ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 2 |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens Type | Motorized vari-focal |
| Auto Focus | N/A |
| Mount Type | Φ14 |
| Focal Length | 2.7 mm–12 mm |
| Max. Aperture | F1.6 |
| Field of View | Diagonal: 39°–130° Horizontal: 34°–107° Vertical: 19°–55° |
| Iris Type | Fixed iris |
| Close Focus Distance | 0.5 m (1.64 ft) |
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 areas; rectangle) |
| Certifications | CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power Supply | DC 12V ±30% |
| Power Consumption | Max 6.6W (12V DC; IR on) |
| Operating Temperature | –30°C to +60°C (–22°F to +140°F) < 95% (non-condensation) |
| Storage Temperature | –30°C to +60°C (–22°F to +140°F) < 95% (non-condensation) |
| Protection Grade | IP67 |
| Casing | Metal front cover+plastic main body+plastic bracket |
| Camera Dimensions | 243.5 mm × 90.7 mm × 90.7 mm (9.59" × 3.57" × 3.57") |
| Net Weight | 0.39 kg (0.86 lb) |
| Gross Weight | 0.61 kg (1.34 lb) |
