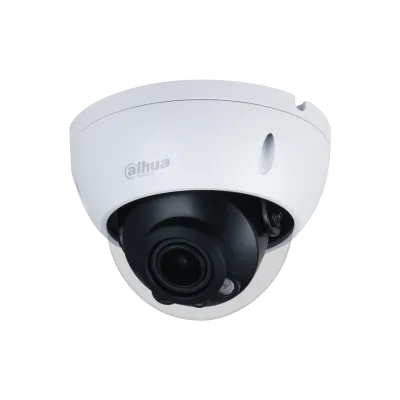

2MP HDCVI POC Motorized Vari-focal IR Dome Camera * The parameters and datasheets below can only be applied to 1200-S5-POC series > Max 30 fps@1080p. > 2.7 mm–12 mm motorized lens. > CVI/CVBS/AHD/TVI switchable. > Max. IR length 30 m, Smart IR. > IP67, IK10, PoC (only CVI)/12V±30% DC.
| Image Sensor | 2MP CMOS |
|---|---|
| Max. Resolution | 1920 (H) × 1080 (V) |
| Pixel | 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.02 Lux/F1.7, 30 IRE, 0 Lux IR on |
| Illumination Distance | 30 m (98.4 ft) |
| Illuminator On/Off Control | Auto; |
| Illuminator Number | 2 (IR light) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355° |
| Lens Type | Motorized Vari-focal |
| Auto Focus | N/A |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–12 mm |
| Max. Aperture | F1.7 |
| Field of View | Diagonal: 38°– 125° Horizontal: 33°–102° Vertical: 19°– 53° |
| Iris Type | Fixed iris |
| Close Focus Distance | 1.2 m (3.9 ft) |
| Frame Rate | CVI: 1080p@25/30 fps; AHD: 1080p@25/30 fps; 720p@25/30 fps; TVI: 1080p@25/30 fps; CVBS: 960H |
| Resolution | 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/DWDR/HLC |
| White Balance | Auto/Area WB |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Yes |
| Privacy Masking | Off/On (8 area, rectangle) |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power Supply | POC (only CVI)/12V±30% DC |
| Power Consumption | Max5.2W (12 VDC, IR on); PoC (AT) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to 140 °F); ﹤ 95% (non-condensation) |
| Storage Temperature | –30 °C to +60 °C (–22 °F to 140 °F); ﹤ 95% (non-condensation) |
| Protection Grade | IP67; IK10 |
| Casing | Plastic dome cover+metal upper casing+metal pedestal |
| Camera Dimensions | φ122.0 mm × 88.9 mm (φ4.80" × 3.50") |
| Net Weight | 0.34 Kg (0.7 lb) |
| Gross Weight | 0.51Kg (1.1lb) |
