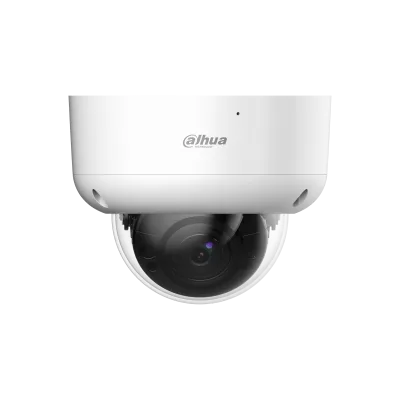

Dahua HAC-HDBW2241RA-Z-A-DP - Dome analog HD kamera

Markaya göre filtrele

Dahua HAC-HDBW2241RA-Z-A-DP - Dome analog HD kamera
Dahua

Dahua HAC-HDBW2241RA-Z-A-DP - Dome analog HD kamera

Model kodu
HAC-HDBW2241RA-Z-A-DP
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2MP Starlight HDCVI Motorized Vari-focal IR Dome Camera * The parameters and datasheets below can only be applied to2241-S2 series. > Max 30 fps@1080p. > Starlight, 130 dB true WDR, 3D NR. > Auto focus, 2.7 mm–13.5 mm motorized lens. > CVI/CVBS/AHD/TVI switchable. > Super Adapt. > Built-in mic. > Max. IR length 60 m, Smart IR. > IP67,IK10,AC 24V /DC 12V .

Teknik özellikler

Image Sensor 2MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Pixel 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.001 Lux/F1.5, 30 IRE, 0Lux IR on
Illumination Distance 60 m (196.9 ft)
Illuminator On/Off Control Auto
Illuminator Number 3 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355°
Lens Type Motorized Vari-focal
Auto Focus Yes
Mount Type φ14
Focal Length 2.7 mm-13.5mm
Max. Aperture F1.5
Field of View Diagonal: 131°~35° Horizontal: 108°~30° Vertical: 56°~17°
Iris Type Fixed
Close Focus Distance 0.8 m (2.6 ft )
Frame Rate CVI: PAL: 1080p@25fps; NTSC: 1080p@30fps; AHD: PAL: 1080p@25fps; NTSC: 1080p@30fps; TVI: PAL: 1080p@25fps; NTSC: 1080p@30fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H
Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/WDR/HLC
WDR 130 dB
White Balance Auto/Area WB
Gain Control Auto; manual
Noise Reduction 3D NR
Smart IR Yes
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Audio Input One channel built-in mic
Power Supply DC12V±10%; AC24V±25%
Power Consumption Max 9.9W (12V DC, IR on)
Operating Temperature –30 °C~+60 °C (-22 °F to 140 °F); ﹤ 95% (non-condensation)
Storage Temperature –30 °C~+60 °C (-22 °F to 140 °F); ﹤ 95% (non-condensation)
Protection Grade IP67; IK10
Casing Metal throughout the whole casing
Camera Dimensions φ126 mm × 100 mm (φ5" × 3.9")
Net Weight 0.65 kg (1.4 lb)
Gross Weight 0.83 kg (1.8 lb)

Dokümanlar

Data Sheet
