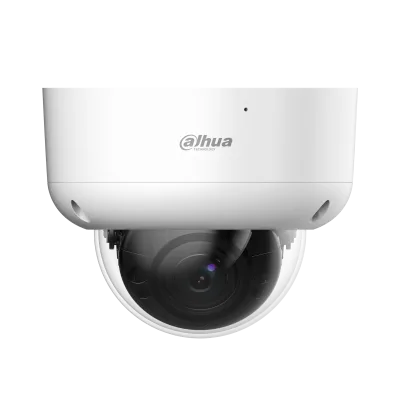

Dahua HAC-HDBW2241RA-Z-A-POC - Dome analog HD kamera

Markaya göre filtrele

Dahua HAC-HDBW2241RA-Z-A-POC - Dome analog HD kamera
Dahua

Dahua HAC-HDBW2241RA-Z-A-POC - Dome analog HD kamera

Model kodu
HAC-HDBW2241RA-Z-A-POC
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2 MP Starlight HDCVI Motorized Vari-focal IR Dome Camera * The parameters and datasheets below can only be applied to 2241-S2-POC series. > Max 30 fps@1080p > Starlight, 130 dB true WDR, 3D NR > Auto focus, 2.7 mm–13.5 mm motorized lens > CVI/CVBS/AHD/TVI switchable > Super Adapt · Built-in mic > Max. IR length 60 m, Smart IR > IP67,IK10,PoC (only CVI)/12V±30% DC

Teknik özellikler

Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Pixel 2 MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.001 Lux/F1.6, 30 IRE, 0 Lux IR on
Illumination Distance 60 m (196.9 ft)
Illuminator On/Off Control Auto
Illuminator Number 3 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355°
Lens Type Motorized Vari-focal
Auto Focus Yes
Mount Type φ14
Focal Length 2.7 mm-13.5 mm
Max. Aperture F1.6
Field of View Diagonal: 131°–35° Horizontal: 108°–30° Vertical: 56°–17°
Iris Type Fixed
Close Focus Distance 0.8 m (2.6 ft )
Frame Rate CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H
Resolution 1080p (1920 × 1080); 960H (960 × 576 / 960 × 480)
Day/Night Auto switch by ICR
BLC BLC/WDR/HLC
WDR 130 dB
White Balance Auto/Area WB
Gain Control Auto; manual
Noise Reduction 3D NR
Smart IR Yes
Mirror Yes
Privacy Masking Off/On (8 area, rectangle)
Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic
Power Supply POC (only CVI)/12 V±30% DC
Power Consumption Max6.9 W (12 VDC, IR on) PoC (AT)
Operating Temperature –30 °C to +60 °C (–22 °F to 140 °F); < 95% (non-condensation)
Storage Temperature –30 °C to +60 °C (–22 °F to 140 °F); < 95% (non-condensation)
Protection Grade IP67; IK10
Casing Metal throughout the whole casing
Camera Dimensions φ126 mm × 100 mm (φ5" × 3.9")
Net Weight 0.65 kg (1.4 lb)
Gross Weight 0.83 kg (1.8 lb)

Dokümanlar

Data Sheet
