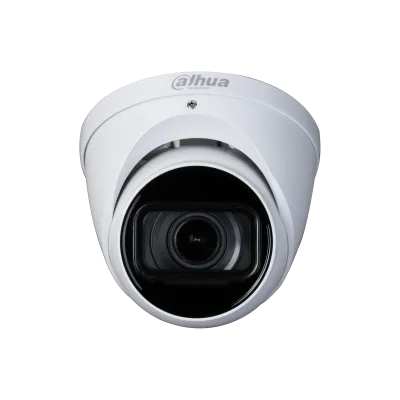

Dahua HAC-HDW1200T-Z-A-POC - Dome analog HD kamera

Markaya göre filtrele

Dahua HAC-HDW1200T-Z-A-POC - Dome analog HD kamera
Dahua

Dahua HAC-HDW1200T-Z-A-POC - Dome analog HD kamera

Model kodu
HAC-HDW1200T-Z-A-POC
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2MP HDCVI POC Motorized Vari-focal IR Eyeball Camera * The parameters and datasheets below can only be applied to 1200-S5-POC series. > Max 30 fps@1080P. > 2.7mm-12mm motorized lens. > CVI/CVBS/AHD/TVI switchable. > Built-in mic. > Max. IR length 60m, Smart IR. > IP67, PoC (only CVI)/12V±30% DC.

Teknik özellikler

Image Sensor 2MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Pixel 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.02 Lux/F1.7, 30IRE, 0 Lux IR on
Illumination Distance 60 m (196.9 ft)
Illuminator On/Off Control Auto
Illuminator Number 2 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Motorized Vari-focal
Auto Focus N/A
Mount Type φ14
Focal Length 2.7 mm–12 mm
Max. Aperture F1.7
Field of View Diagonal: 38°– 125° Horizontal: 33°–102° Vertical: 19°– 53°
Iris Type Fixed
Close Focus Distance 1.2 m (3.9 ft)
Frame Rate CVI: 1080p@25/30fps; 720p@25/30fps; AHD: 1080p@25/30fps; 720p@25/30fps; TVI: 1080p@25/30fps; 720p@25/30fps; CVBS: 960H
Resolution 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/DWDR/HLC
White Balance Auto/Area WB
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Yes
Privacy Masking Off/On (8 area, rectangle)
Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic
Power Supply POC (only CVI)/12V±30% DC
Power Consumption Max6.4W (12 VDC, IR on); PoC (AT)
Operating Temperature –30 °C to +60 °C (–22 °F to 140 °F); ﹤ 95% (non-condensation)
Storage Temperature –30 °C to +60 °C (–22 °F to 140 °F); ﹤ 95% (non-condensation)
Protection Grade IP67
Casing Metal throughout the whole casing
Camera Dimensions Φ122 mm × 104.8 mm ( Φ4.80" × 4.13" )
Net Weight 0.59 Kg (1.3 lb)
Gross Weight 0.74 Kg (1.6 lb)

Dokümanlar

Data Sheet
