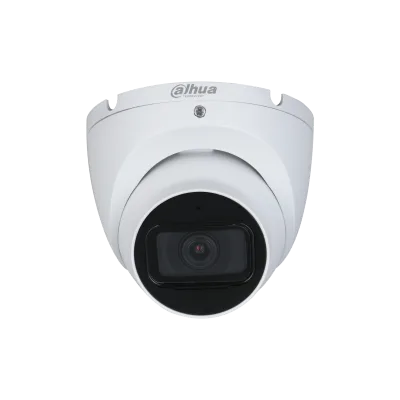

Dahua HAC-HDW1200TLM-A-POC - Dome analog HD kamera
Dahua

Dahua HAC-HDW1200TLM-A-POC - Dome analog HD kamera

Model kodu
HAC-HDW1200TLM-A-POC
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2MP HDCVI POC IR Eyeball Camera * The parameters and datasheets below can only be applied to to 1200-S5-POC series. > Max 30 fps@1080P

Teknik özellikler

Image Sensor 2MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Pixel 2 MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s
S/N Ratio >65 dB
Min. Illumination 0.02Lux/F2.0, 30IRE, 0Lux IR on
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8 mm; 3.6 mm;
Max. Aperture F2.0
Field of View 2.8 mm: H: 102° V: 54° D:120° 3.6 mm: H: 85° V: 45° D:100°
Iris Type Fixed
Close Focus Distance 2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.9 m (3.0 ft)
Frame Rate CVI: 1080P@25/30 fps; 720P@25/30 fps AHD: 1080P@25/30 fps; 720P@25/30 fps TVI: 1080P@25/30 fps; 720P@25/30 fps CVBS: 960H;
Resolution 1080P (1920 × 1080); 720P (1280 × 720); 960H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto; Area WB
Gain Control Auto/Manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Certifications CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic
Power Supply 12V ±30% DC
Power Consumption Max 2.9 W (12 VDC, IR on); POC (AF)
Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
Protection Grade IP67
Casing Metal throughout the whole casing
Camera Dimensions φ94.0 mm × 85.7 mm (φ3.70" × 3.37")
Net Weight 0.33 kg (0.73 lb)
Gross Weight 0.47 kg (1.04 lb)

Dokümanlar

Data Sheet
