Dahua HAC-HDW1200TLMQ-A-POC - Dome analog HD kamera
Dahua

Dahua HAC-HDW1200TLMQ-A-POC - Dome analog HD kamera

Model kodu
HAC-HDW1200TLMQ-A-POC
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

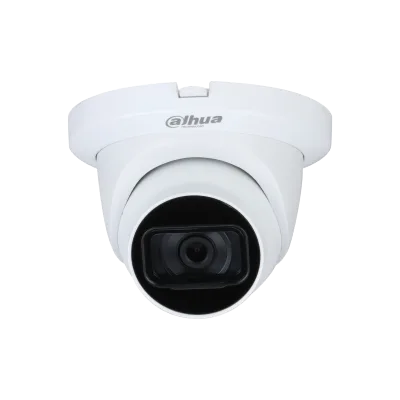

2MP HDCVI Fixed IR Quick-to-install Eyeball Camera * The parameters and datasheets below can only be applied to 1200-S5-POC series > Max 30 fps@1080P.

Teknik özellikler

Image Sensor 2MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Pixel 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.02 Lux/F1.9, 30 IRE, 0 Lux IR on
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.9
Field of View 2.8 mm: D: 119°, H: 101°, V: 54° 3.6 mm: D: 100°; H: 84°; V: 45°
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.8 m (2.6 ft)
Frame Rate CVI: 1080p@25/30 fps; 720p@25/30 fps; AHD: 1080p@25/30 fps; 720p@25/30 fps; TVI: 1080p@25/30 fps; 720p@25/30 fps; CVBS: 960H
Resolution 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/DWDR/HLC
White Balance Auto/Area WB
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic
Power Supply POC (only CVI)/12V±30% DC
Power Consumption Max 2.9W (12 VDC, IR on); POC (AF)
Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F); ﹤ 95% (non-condensation)
Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F); ﹤ 95% (non-condensation)
Protection Grade IP67
Casing Metal dome+metal cover+plastic decorative ring
Camera Dimensions φ109.9 mm × 88.1 mm ( φ4.33" × 3.47" )
Net Weight 0.35 Kg (0.8 lb)
Gross Weight 0.46 Kg (1.0 lb)

Dokümanlar

Data Sheet
