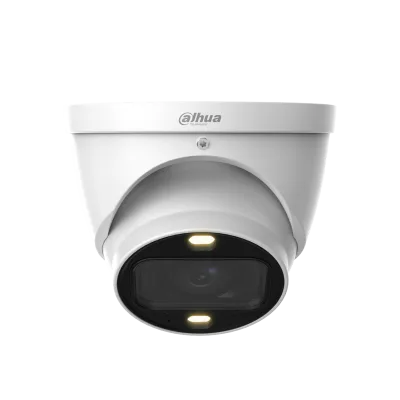

Dahua HAC-HDW1509T-Z-A-LED-DP - Dome analog HD kamera

Markaya göre filtrele

Dahua HAC-HDW1509T-Z-A-LED-DP - Dome analog HD kamera
Dahua

Dahua HAC-HDW1509T-Z-A-LED-DP - Dome analog HD kamera

Model kodu
HAC-HDW1509T-Z-A-LED-DP
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

5MP Full-Color HDCVI Motorized Vari-focal Eyeball Camera * The parameters and datasheets below can only be applied to1509-S2 series. * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version. > Max 25 fps@5MP (16:9 video output)

Teknik özellikler

Image Sensor 5MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.001 Lux/F1.2, 0 Lux White Light on
Illumination Distance 40 m (132.1 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 2
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Motorized Vari-focal
Mount Type φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.2
Field of View H: 35°–112°; V: 19°–58°; D: 40–137°
Iris Type Fixed iris
Close Focus Distance 1.5 m (4.9 ft)
Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)
BLC BLC/HLC/WDR/HLC-Pro
WDR 120 dB
White Balance Auto; Area WB
Gain Control Auto; manual
Noise Reduction 3D NR
Smart Light Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic
Power Supply DC12 V±10%;AC24V±25%
Power Consumption Max 9.9 W (12 V DC, warm light on)
Operating Temperature –30 °C to +60 °C (–22 °F to 140 °F); < 95% (noncondensation)
Storage Temperature –30 °C to +60 °C (–22 °F to 140 °F); < 95% (noncondensation)
Protection Grade IP67
Casing Metal throughout the whole casing
Camera Dimensions φ122 mm × 104.8 mm (φ4.8" × 4.13")
Net Weight 0.61 kg (1.34 lb)
Gross Weight 0.78 kg (1.72 lb)

Dokümanlar

Data Sheet
