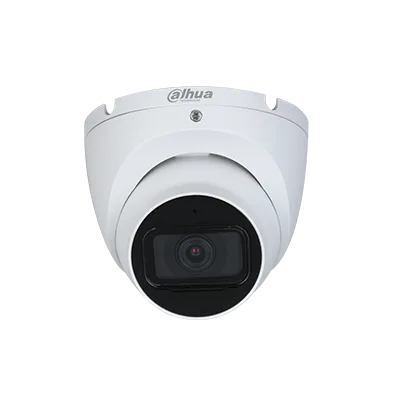

Dahua HAC-HDW1800TLM(-A) - Dome analog HD kamera
Dahua

Dahua HAC-HDW1800TLM(-A) - Dome analog HD kamera

Model kodu
HAC-HDW1800TLM(-A)
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

4K Real-time HDCVI IR Eyeball Camera

Teknik özellikler

Image Sensor 4K CMOS
Max. Resolution 3840 (H )× 2160 (V)
Pixel 8 MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100, 000s NTSC: 1/30 s–1/100, 000 s
S/N Ratio > 65 dB
Min. Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F2.0
Field of View 2.8 mm:H:105° V: 56° D: 125° 3.6 mm: H:87° V: 47° D: 104°
Iris Type Fixed
Close Focus Distance 2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft)
Video Frame Rate CVI: PAL:4K@25fps; 4K@15fps; 5M@20fps; 4M@25fps; NTSC:4K@30fps; 4K@15fps; 5M@20fps; 4M@30fps; AHD: PAL: 4K@15fps; NTSC:4K@15fps; TVI: PAL: 4K@15fps; NTSC:4K@15fps; CVBS: PAL: 960H; NTSC: 960H
Resolution 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 2D NR
Smart Illumination Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic (-A)
Power Supply 12V ±30% DC
Power Consumption Max 4.3 W (12V DC, IR on)
Operating Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Storage Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Protection Grade IP67
Casing Metal throughout the whole casing
Camera Dimensions φ94.0 mm × 85.7 mm (φ3.70" × 3.37")
Net Weight 0.33 kg (0.73 lb)
Gross Weight 0.47 kg (1.04 lb)

Dokümanlar

Data Sheet
