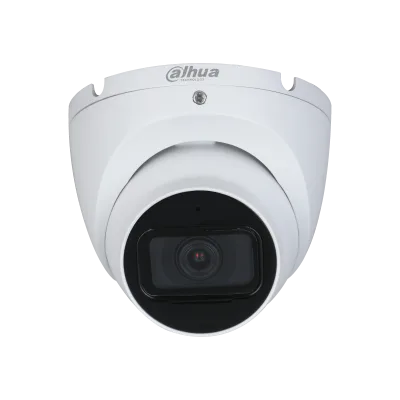

Dahua HAC-HDW1801TLM-A - Dome analog HD kamera
Dahua

Dahua HAC-HDW1801TLM-A - Dome analog HD kamera

Model kodu
HAC-HDW1801TLM-A
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

4K HDCVI IR Eyeball Camera

Teknik özellikler

Image Sensor 4K CMOS
Max. Resolution 3840 (H) × 2160 (V)
Pixel 8MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8mm; 3.6mm;
Max. Aperture F2.0
Field of View 2.8mm:H:105° V:56° D:125° 3.6mm: H:87° V:47°  D:104°
Iris Type Fixed
Close Focus Distance 2.8 mm: 1 m (3.3 ft) 3.6 mm: 1.8 m (5.9 ft)
Video Frame Rate CVI: PAL: 4K@15fps; 5M@20fps; 4M@25fps; NTSC:4K@15fps; 5M@20fps; 4M@30fps; AHD: PAL: 4K@15fps; 5M@20fps; 4M@25fps; NTSC:4K@15fps; 5M@20fps; 4M@30fps; TVI: PAL: 4K@15fps; 5M@20fps; 4M@25fps; NTSC:4K@15fps; 5M@20fps; 4M@30fps; CVBS: PAL: 960H; NTSC: 960H
Resolution 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480);
Day/Night Auto switch by ICR
BLC BLC/HLC/WDR
WDR 120dB
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D NR
Smart Illumination Yes
Defog Electronic defog
Digital Zoom 4×
Mirror Off/On
Privacy Masking Off/On (8area,rectangle)
Certifications CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic (-A)
Power Supply 12V ±30% DC
Power Consumption Max 5.2W (12V DC, IR on)
Operating Temperature –40°C to +60°C (-40°F to 140°F); < 95% (non-condensation)
Storage Temperature –40°C to +60°C (-40°F to 140°F); < 95% (non-condensation)
Protection Grade IP67
Casing Metal throughout the whole casing
Camera Dimensions φ94.0 mm × 85.7 mm (φ3.70" × 3.37")
Net Weight 0.33 kg (0.73 lb)
Gross Weight 0.47 kg (1.04 lb)

Dokümanlar

Data Sheet
