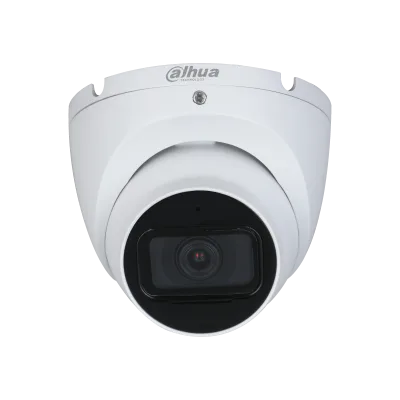

Dahua HAC-HDW2501TLM-A - Dome analog HD kamera

Markaya göre filtrele

Dahua HAC-HDW2501TLM-A - Dome analog HD kamera
Dahua

Dahua HAC-HDW2501TLM-A - Dome analog HD kamera

Model kodu
HAC-HDW2501TLM-A
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

5MP Starlight HDCVI IR Eyeball Camera > * The parameters and datasheets below can only be applied to2501-S2 series. > * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version. > Max 25 fps@5MP (16:9 video output)

Teknik özellikler

Image Sensor 5MP CMOS
Max. Resolution 2880(H)×1620(V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s
S/N Ratio >65 dB
Min. Illumination 0.001 Lux/F1.6, 30IRE, 0Lux IR on
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8 mm; 3.6 mm;
Max. Aperture F1.6
Field of View 2.8 mm:H:111° V:58° D:132° 3.6 mm: H:92° V:48°  D:109°
Iris Type Fixed
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft) 3.6 mm: 1.6 m (5.2 ft)
Video Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 ×1080); 960 H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/WDR/HLC-Pro
WDR 120dB
White Balance Auto; Area WB
Gain Control Auto/Manual
Noise Reduction 3D NR
Smart Illumination Yes
Defog Electronic defog
Digital Zoom 4×
Mirror Off/On
Privacy Masking Off/On (8area,rectangle)
Certifications CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Audio Input One channel built-in mic
Power Supply 12V ±30% DC
Power Consumption Max 4.3W (12V DC, IR on)
Operating Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Storage Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Protection Grade IP67
Casing Metal throughout the whole casing
Camera Dimensions φ94.0 mm × 85.7 mm (φ3.70" × 3.37")
Net Weight 0.33 kg (0.73 lb)
Gross Weight 0.47 kg (1.04 lb)

Dokümanlar

Data Sheet

Bu ürünü satan firmalar

3 firma
AMERKEZ TEKONOLJİ VE YAZILIM
Küçükçekmece, İstanbul
BİGES GÜVENLİ HAYAT TEKNOLOJİLERİ A.Ş.
Şişli, İstanbul
OKİSAN GÜVENLİK TEKNOLOJİLERİ SAN. VE TİC. A.Ş.
Şişli, İstanbul
