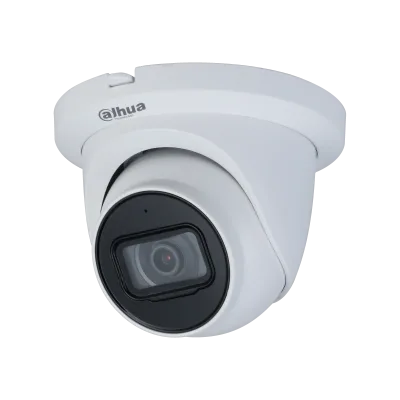

Dahua HAC-HDW2501TMQ-A-POC - Dome analog HD kamera

Markaya göre filtrele

Dahua HAC-HDW2501TMQ-A-POC - Dome analog HD kamera
Dahua

Dahua HAC-HDW2501TMQ-A-POC - Dome analog HD kamera

Model kodu
HAC-HDW2501TMQ-A-POC
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

5MP Starlight HDCVI Quick-to-install IR Eyeball Camera * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version. > Max 25 fps@5MP (16:9 video output)

Teknik özellikler

Image Sensor 1/2.7" CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.001 Lux/F1.6, 30 IRE, 0 Lux IR on
Illumination Distance 60 m (196.9 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F1.6
Field of View 2.8 mm: H: 111°; V: 58°; D: 132° 3.6 mm: H: 92°; V: 48°; D: 109° 6 mm: H: 57°; V: 30°; D: 65°
Iris Type Fixed
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft) 3.6 mm: 1.6 m (5.2 ft) 6 mm: 3.1 m (10.2 ft)
Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps NTSC: 5M@25 fps; 4M@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)
Day/Night Auto (ICR)
BLC BLC/HLC/WDR/HLC-Pro
WDR 120 dB
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D NR
Smart IR Yes
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Audio Interface One channel built-in mic
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power Supply POC (only CVI)/12V±30% DC
Power Consumption Max 5.9W (12 VDC, IR on); PoC (AF)
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
Protection Grade IP67
Casing Metal dome+metal cover+plastic decorative ring
Camera Dimensions φ121.9 mm × 99.1 mm (φ4.8" × 3.9")
Net Weight 0.54 kg (1.19 lb)
Gross Weight 0.73 kg (1.61 lb)

Dokümanlar

Data Sheet
