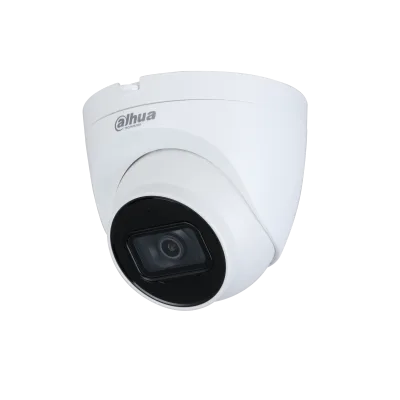

Dahua HAC-HDW2501TQ-A - Dome analog HD kamera

Markaya göre filtrele

Dahua HAC-HDW2501TQ-A - Dome analog HD kamera
Dahua

Dahua HAC-HDW2501TQ-A - Dome analog HD kamera

Model kodu
HAC-HDW2501TQ-A
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

5MP Starlight HDCVI Quick-to-install IR Eyeball Camera * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version. > Max 25 fps@5MP (16:9 video output)

Teknik özellikler

Image Sensor 1/2.7 inch CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.001 Lux/F1.6, 30IRE, 0Lux IR on
Illumination Distance 40 m (131.2 ft)
Illuminator On/Off Control Auto / Manual
Illuminator Number 1
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F1.6
Field of View 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical) 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical) 6 mm: 65° × 57° × 30° (diagonal × horizontal × vertical)
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft) 3.6 mm: 1.6 m (5.2 ft) 6 mm: 3.1 m (10.2 ft)
Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/WDR/HLC-Pro
WDR 120 dB
White Balance Auto / Manual
Gain Control Auto / Manual
Noise Reduction 2D NR/3D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Audio Interface One channel built-in mic
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power Supply DC 12V ±30%
Power Consumption Max 4.3W (12V DC, IR on)
Operating Temperature –40°C to +60°C (–40°F to +140°F); < 95% (non-condensation)
Storage Temperature –40°C to +60°C (–40°F to +140°F); < 95% (non-condensation)
Protection Grade IP67
Casing Metal inner core+plastic cover+plastic pedestal
Camera Dimensions φ109.9 mm × 100.9 mm (φ4.33" × 3.97")
Net Weight 0.34 kg (0.75 lb)
Gross Weight 0.52 kg (1.15 lb)

Dokümanlar

Data Sheet
