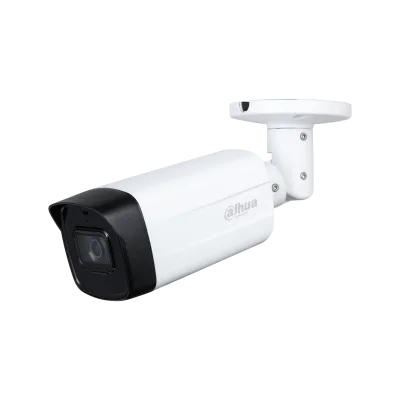

Dahua HAC-HFW1200TH-I8-A-POC - Bullet analog HD kamera

Markaya göre filtrele

Dahua HAC-HFW1200TH-I8-A-POC - Bullet analog HD kamera
Dahua

Dahua HAC-HFW1200TH-I8-A-POC - Bullet analog HD kamera

Model kodu
HAC-HFW1200TH-I8-A-POC
Sistem
Kamera sistemi
Kategori
Bullet analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2MP HDCVI POC Fixed IR Bullet Camera * The parameters and datasheets below can only be applied to 1200-S5-POC series > Max 30 fps@1080P. > 3.6mm fixed lens (6mm,8mm optional). > CVI/CVBS/AHD/TVI switchable. > Built-in mic. > Max. IR length 80m, Smart IR. > IP67, PoC (only CVI)/12V±30% DC.

Teknik özellikler

Image Sensor 2MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Pixel 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.02 Lux/F1.9, 30 IRE, 0 Lux IR on
Illumination Distance 80 m (262.5 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 2 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens Type Fixed lens
Mount Type M12
Focal Length 3.6 mm; 6 mm; 8 mm
Max. Aperture F1.9
Field of View 3.6 mm: D: 100°; H: 84°; V: 45° 6 mm: D: 60°; H: 56°; V: 30° 8 mm: D: 46°; H: 40°; V: 22°
Iris Type Fixed iris
Close Focus Distance 3.6 mm: 0.8 m (2.6 ft) 6 mm: 2 m (6.6 ft) 8 mm: 3.5 m (11.5 ft)
DORI Distance 3.6 mm: D: 49.7m (163.1 ft); O: 19.9 m (65.3 ft); R: 9.9 m (32.5 ft); I: 5 m (16.4 ft) 6 mm: D: 82.8 m (271.7 ft); O: 33.1 m (108.6 ft); R: 16.6 m (54.5 ft); I: 8.3 m (27.2 ft) 8 mm: D: 110.3 m (361.9 ft); O: 44.1 m (144.7 ft); R: 22.1 m (72.5 ft); I: 11.0 m (36.1 ft)
Frame Rate CVI: 1080p@25/30 fps; 720p@25/30 fps; AHD: 1080p@25/30 fps; 720p@25/30 fps; TVI: 1080p@25/30 fps; 720p@25/30 fps; CVBS: 960H
Resolution 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/DWDR/HLC
White Balance Auto/Area WB
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic
Power Supply POC (only CVI)/12V±30% DC
Power Consumption Max 4.9W (12 VDC, IR on); PoC (AT)
Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F); ﹤ 95% (non-condensation)
Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F); ﹤ 95% (non-condensation)
Protection Grade IP67
Casing Metal front cover+plastic main body+metal bracket
Camera Dimensions 240.7 mm × 90.7 mm × 90.4 mm ( 9.48" × 3.57" × 3.56" )
Net Weight 0.43 kg (0.90 lb)
Gross Weight 0.64 kg (1.40 lb)

Dokümanlar

Data Sheet
