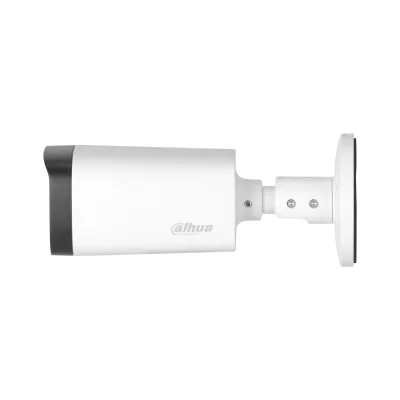

Dahua HAC-HFW1231R-Z-A-DP - Bullet analog HD kamera

Markaya göre filtrele

Dahua HAC-HFW1231R-Z-A-DP - Bullet analog HD kamera
Dahua

Dahua HAC-HFW1231R-Z-A-DP - Bullet analog HD kamera

Model kodu
HAC-HFW1231R-Z-A-DP
Sistem
Kamera sistemi
Kategori
Bullet analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2MP Starlight HDCVI IR Bullet Camera

Teknik özellikler

Pixel 2MP
Image Sensor 1/2.8"CMOS
Max. Resolution 1920 (H) × 1080 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
Min. Illumination 0.002lux/F1.5, 30IRE, 0Lux IR on
S/N Ratio > 65 dB
Illumination Distance 80 m (262.5 ft)
Illuminator On/Off Control Auto
Illuminator Number 4 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens Type Motorized vari-focal
Auto Focus Yes
Lens Mount φ14
Focal Length 2.7 mm–12 mm
Max. Aperture F1.5
Field of View Diagonal: 38°– 123° Horizontal: 33°–102° Vertical: 19°–53°
Iris Control Fixed
Close Focus Distance 0.5 m (1.6ft )
Video Frame Rate CVI: PAL: 1080P@25fps; NTSC: 1080P@30fps; AHD: PAL: 1080P@25fps; NTSC: 1080P@30fps; TVI: PAL: 1080P@25fps; NTSC: 1080P@30fps; CVBS: PAL: 960×576H; NTSC: 960×480H;
Resolution 1080P (1920 × 1080); 960H (960 × 576/960 × 480);
Day/Night Auto (ICR)
BLC BLC/WDR/HLC
WDR 130 dB
White Balance Auto/Area WB
Gain Control Auto/Manual
Noise Reduction 3D NR
Smart Illumination Yes
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic
Power Supply 12V DC±10%; 24V AC±25%
Power Consumption Max 12W (12V DC, IR on)
Operating Temperature –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)
Storage Temperature –30°C~+60°C–30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)
Protection IP67
Casing Metal throughout the whole casing
Camera Dimensions 209.6 mm × 90.4 mm × 90.4 mm (8.30" × 3.56" × 3.56")
Net Weight 0.58 kg(1.3 lb)
Gross Weight 0.79 kg(1.7 lb)

Dokümanlar

Data Sheet
