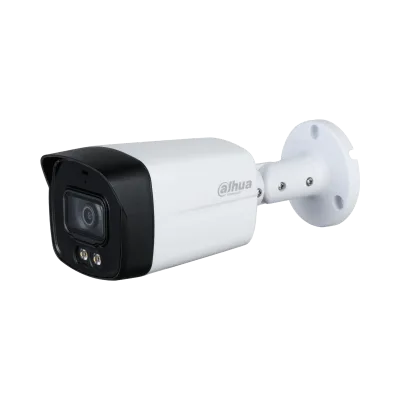

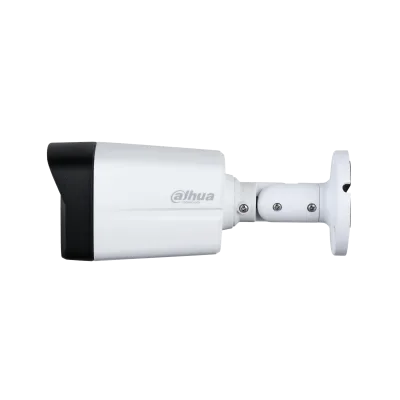

Dahua HAC-HFW1239TLM-IL-A - Bullet analog HD kamera

Markaya göre filtrele

Dahua HAC-HFW1239TLM-IL-A - Bullet analog HD kamera
Dahua

Dahua HAC-HFW1239TLM-IL-A - Bullet analog HD kamera

Model kodu
HAC-HFW1239TLM-IL-A
Sistem
Kamera sistemi
Kategori
Bullet analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2MP Smart Dual Illuminators Bullet Camera * The parameters and datasheets below can only be applied to1239-IL series. * In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version. > Smart Dual Illuminators

Teknik özellikler

Pixel 2 MP
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
Min. Illumination 0.001 [email protected] (Color, 30 IRE) 0.0001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance IR: 40 m (131.23 ft) Warm light: 40 m (131.23 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Aperture F1.6
Field of View 2.8 mm: H: 107°; V: 56°; D: 127°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.7 m (2.29 ft)
Video Frame Rate CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H
Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto (ICR)/Color/B/W
BLC BLC; HLC; WDR
WDR 130 dB
White Balance Auto; Area white balance
Gain Control Auto/Manual
Noise Reduction 3D NR
Smart Illumination Yes
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Illuminator Smart IR&WL; WL Mode; IR Mode
Certifications CE (EN55032:2015, EN61000-3-2: 2014, EN61000-3-3: 2013, EN55024:2010+A1: 2015, EN55035: 2017, EN50130-4: 2011+A1: 2014, EN62368-1: 2014+A11: 2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in MIC (-A)
Power Supply 12 VDC ± 30%
Power Consumption Max 4.0 W (12 VDC, LED on)
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity <95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67
Casing Material Metal front cover + plastic rear barrel + metal bracket
Product Dimensions 198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.16" × 3.00")
Packaging Dimensions 240 mm × 115 mm × 111 mm (9.45" × 4.53" × 4.37")
Net Weight 0.30 kg (0.66 lb)
Gross Weight 0.48 kg (1.06 lb)
Installation Wall mount; ceiling mount; vertical pole mount

Dokümanlar

Data Sheet
