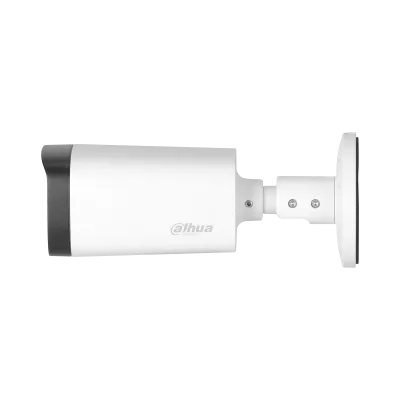

Dahua HAC-HFW1500R-Z-IRE6-A-POC - Bullet analog HD kamera
Dahua

Dahua HAC-HFW1500R-Z-IRE6-A-POC - Bullet analog HD kamera

Model kodu
HAC-HFW1500R-Z-IRE6-A-POC
Sistem
Kamera sistemi
Kategori
Bullet analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

5MP Starlight HDCVI POC IR Bullet Camera * The parameters and datasheets below can only be applied to 1500-S2 series. * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version. > Max 25 fps@5MP (16:9 video output) > CVI/CVBS/AHD/TVI switchable > 2.7 mm–12 mm motorized lens > Built-in mic > Max. IR length 60 m, Smart IR > IP67, PoC (only CVI)/12V±30% DC

Teknik özellikler

Image Sensor 1/2.7 inch CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.005 Lux/F1.6, 30IRE, 0 Lux IR on
Illumination Distance 60 m (196.9 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 4
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens Type Motorized vari-focal
Auto Focus N/A
Mount Type φ14
Focal Length 2.7 mm–12 mm
Max. Aperture F1.6
Field of View Diagonal: 39°–130° Horizontal: 34°–107° Vertical: 19°–55°
Iris Type Fixed iris
Close Focus Distance 0.5 m (1.64 ft)
Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Audio Output One channel built-in mic
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power Supply PoC (only CVI)/12V±30% DC
Power Consumption Max 9.8W (12 VDC, IR on); PoC (AT)
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F); < 95% (non-condensation)
Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F); < 95% (non-condensation)
Protection Grade IP67
Casing Metal throughout the whole casing
Camera Dimensions 209.9 mm × 90.4 mm × 90.4 mm (8.26" × 3.56" × 3.56")
Net Weight 0.55 kg (1.21 lb)
Gross Weight 0.7 kg (1.54 lb)
