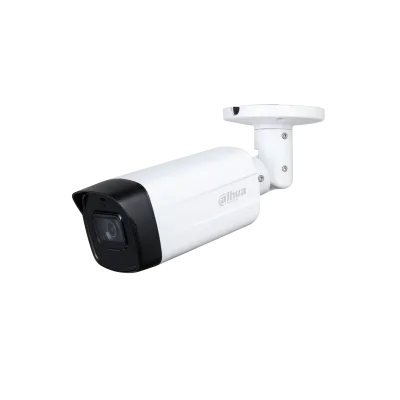

Dahua HAC-HFW1500TH-I4 - Bullet analog HD kamera

Markaya göre filtrele

Dahua HAC-HFW1500TH-I4 - Bullet analog HD kamera
Dahua

Dahua HAC-HFW1500TH-I4 - Bullet analog HD kamera

Model kodu
HAC-HFW1500TH-I4
Sistem
Kamera sistemi
Kategori
Bullet analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

5MP Starlight HDCVI IR Bullet Camera * The parameters and datasheets below can only be applied to 1500-S2 series. * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version. > Max 25 fps@5MP (16:9 video output) > CVI/CVBS/AHD/TVI switchable > 3.6 mm fixed lens (6 mm optional) > Max. IR length 40 m, Smart IR > IP67, DC12V

Teknik özellikler

Image Sensor 1/2.7 inch CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.005 Lux/F1.6, 30IRE, 0 Lux IR on
Illumination Distance 40 m (131.2 ft)
Illumination On/Off Control Auto; manual
Illuminator Number 1
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–180° Rotation: 0°–360°
Lens Type Fixed-focal
Mount Type M12
Focal Length 3.6 mm; 6 mm
Max. Aperture F1.6
Field of View 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical) 6 mm: 65° × 57° × 30° (diagonal × horizontal × vertical)
Iris Type Fixed iris
Close Focus Distance 3.6 mm: 1.6 m (5.2 ft) 6 mm: 3.1 m (10.2 ft)
Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Certifications CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power Supply 12V ±30% DC
Power Consumption Max 3.2W (12V DC, IR on)
Operating Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Storage Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Protection Grade IP67
Casing Mental front cover+plastic main body+mental bracket
Camera Dimensions 240.7 mm × 90.7 mm × 90.4 mm ( 9.48" × 3.57" × 3.56" )
Net Weight 0.41 kg (0.90 lb)
Gross Weight 0.64 kg (1.41 lb)

Dokümanlar

Data Sheet
