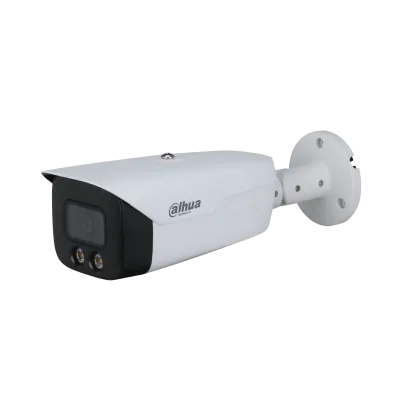

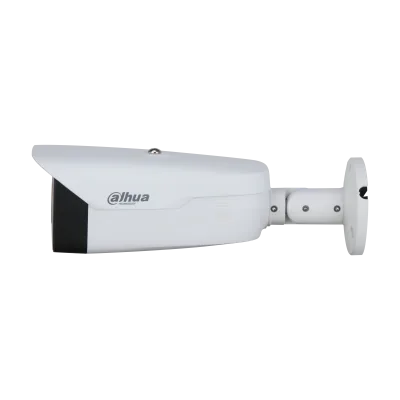

Dahua HAC-HFW1509MH-A-LED - Bullet analog HD kamera

Markaya göre filtrele

Dahua HAC-HFW1509MH-A-LED - Bullet analog HD kamera
Dahua

Dahua HAC-HFW1509MH-A-LED - Bullet analog HD kamera

Model kodu
HAC-HFW1509MH-A-LED
Sistem
Kamera sistemi
Kategori
Bullet analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

5MP Full-color HDCVI Bullet Camera * The parameters and datasheets below can only be applied to1509-S2 series. *In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version. > Max 25 fps@5MP (16:9 video output) > 120 dB true WDR, 3D NR > 24/7 color imaging > 50 m illumination distance > CVI/CVBS/AHD/TVI switchable > Built-in mic > 3.6 mm fixed lens (6mm mm optional) > IP67, 12 V DC

Teknik özellikler

Image Sensor 5MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.001 Lux/F1.0, 0 Lux warm light on
Illumination Distance 50 m (164 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 2
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens Type Fixed lens
Mount Type M12
Focal Length 3.6 mm; 6 mm
Max. Aperture F1.0
Field of View 3.6 mm: H: 88; V: 46°; D: 104° 6mm: H: 59; V: 32°; D: 67°
Iris Type Fixed iris
Close Focus Distance 3.6 mm: 2.3 m (7.5 ft) 6mm:4.5m (14.8 ft)
Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
BLC BLC/HLC/WDR/HLC-Pro
WDR 120 dB
White Balance Auto; Area WB
Gain Control Auto; manual
Noise Reduction 3D NR
Smart Light Yes
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Certifications CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic
Power Supply 12 V ±30% DC
Power Consumption Max 6.4 W (12 V DC, warm light on)
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
Protection Grade IP67
Casing Metal front cover + plastic main body + plastic bracket
Camera Dimensions 304 mm × 108.4 mm × 90.8 mm (11.97" × 4.27" × 3.57")
Net Weight 0.82 kg (1.8 lb)
Gross Weight 1.25kg (2.8 lb)

Dokümanlar

Data Sheet
