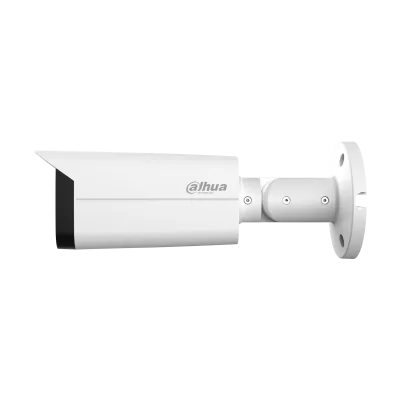

Dahua HAC-HFW2249TU-A-LED - Bullet analog HD kamera

Markaya göre filtrele

Dahua HAC-HFW2249TU-A-LED - Bullet analog HD kamera
Dahua

Dahua HAC-HFW2249TU-A-LED - Bullet analog HD kamera

Model kodu
HAC-HFW2249TU-A-LED
Sistem
Kamera sistemi
Kategori
Bullet analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2MP Full-color HDCVI Bullet Camera * The parameters and datasheets below can only be applied to 2249-S2 series. > 24/7 color imaging, Max. 30 fps@1080p. > 60 m illumination distance. > Super Adapt, 120 dB true WDR, 3D NR. > Built-in mic. > 3.6 mm fixed lens (2.8 mm, 6 mm optional). > CVI/CVBS/AHD/TVI switchable. > IP67, DC 12 V.

Teknik özellikler

Image Sensor 2MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Pixel 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.0002 Lux/F1.0, 0 Lux White Light on
Illumination Distance 60 m (196.9 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 4
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°"
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F1.0
Field of View 2.8 mm: H: 106°; V: 55°; D: 125° 3.6 mm: H: 84°; V: 44°; D: 99° 6 mm: H: 57°; V: 31°; D: 65°
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 1 m (3.3 ft) 3.6 mm: 1.7 m (5.6 ft) 6 mm: 4.3m (14.1 ft)
Frame Rate CVI: PAL: 1080P@25fps NTSC: 1080P@30fps AHD: PAL: 1080P@25fps NTSC: 1080P@30fps TVI: PAL: 1080P@25fps NTSC: 1080P@30fps CVBS: PAL: 960H NTSC: 960H
Resolution 1080P (1920 × 1080) ; 960H (960× 576/960 × 480) ;
BLC BLC/HLC/WDR/HLC-Pro
WDR 120dB
White Balance Auto; Area white balance
Gain Control Auto; manual
Noise Reduction 3D NR
Smart Light Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Audio Input One channel built-in mic
Power Supply 12V ±30% DC
Power Consumption Max 10.2W (12V DC, warm light on)
Operating Temperature –40°C to +60°C (–40°F to 140°F) ; <95% (non-condensation)
Storage Temperature –40°C to +60°C (–40°F to 140°F) ;<95% (non-condensation)
Protection Grade IP67
Casing Metal throughout the whole casing
Camera Dimensions 244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56")
Net Weight 0.76 kg (1.68 lb)
Gross Weight 1.02 kg (2.25 lb)

Dokümanlar

Data Sheet
