Dahua

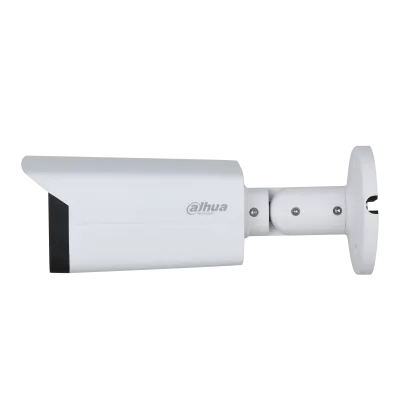

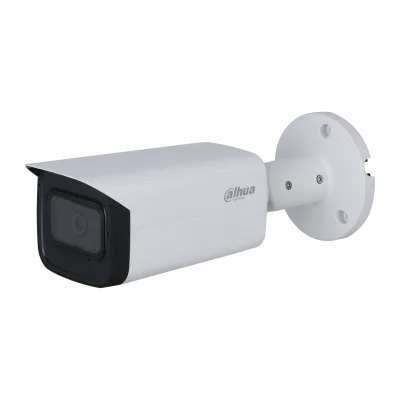

Dahua HAC-HFW2501TU-A - Bullet analog HD kamera
- Model kodu
- HAC-HFW2501TU-A
- Sistem
- Kamera sistemi
- Kategori
- Bullet analog HD kamera
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
5MP Starlight HDCVI IR Bullet Camera * The parameters and datasheets below can only be applied to 2501-S2 series. > Max 25 fps@5MP (16:9 video output) > Starlight, 120 dB true WDR, 3D NR > CVI/CVBS/AHD/TVI switchable > 3.6 mm fixed lens (6 mm, 8 mm optional) > Built-in mic > Max. IR length 80 m, Smart IR > IP67, DC12V±30%
Teknik özellikler
| Image Sensor | 1/2.7 inch CMOS |
|---|---|
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pixel | 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s |
| S/N Ratio | 0.001 Lux/F1.6, 30IRE, 0Lux IR on |
| Min. Illumination | > 65 dB |
| Illumination Distance | 80 m (262.47 ft) |
| Illuminator On/Off Control | Auto / Manual |
| Illuminator Number | 4 |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 3.6 mm; 6 mm; 8 mm |
| Max. Aperture | F1.6 |
| Field of View | 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical) 6 mm: 65° × 57° × 30° (diagonal × horizontal × vertical) 8 mm: 48°×43°×24° (diagonal × horizontal × vertical) |
| Iris Type | Fixed iris |
| Close Focus Distance | 3.6 mm: 1.6 m (5.2 ft) 6 mm: 3.1 m (10.2 ft) 8 mm: 4.3 m (14.1 ft) |
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR/3D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Audio Interface | One channel built-in mic |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| Power Supply | DC 12V ±30% |
| Power Consumption | Max 9.6W (12V DC, IR on) |
| Operating Temperature | –40°C to +60°C (–40°F to +140°F); < 95% (non-condensation) |
| Storage Temperature | –40°C to +60°C (–40°F to +140°F); < 95% (non-condensation) |
| Protection Grade | IP67 |
| Casing | Metal throughout the whole casing |
| Camera Dimensions | 244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56") |
| Net Weight | 0.77 kg (1.70 lb) |
| Gross Weight | 1.04 kg (2.29 lb) |
