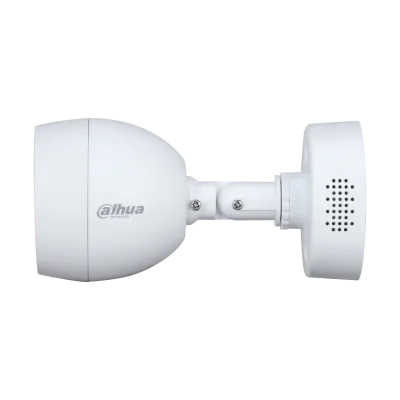

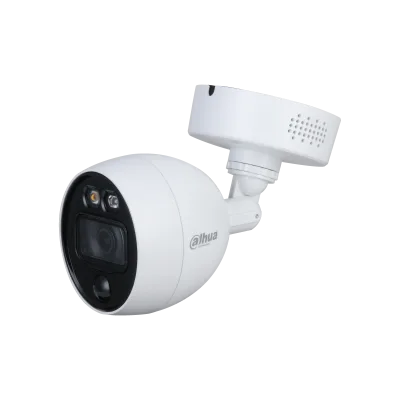

2MP HDCVI Active Deterrence Camera > * The parameters and datasheets below can only be applied to 1200-S5 series > Max 30 fps@1080P
| Image Sensor | 2MP CMOS |
|---|---|
| Max. Resolution | 1920 (H) × 1080 (V) |
| Pixel | 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.02 Lux/F2.0, 30 IRE, 0 Lux IR on |
| S/N Ratio | > 65 dB |
| Illumination Distance | 30 m (98.4 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 1 (IR light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8mm;3.6mm; |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: F2.0 3.6 mm: F2.0 |
| Field of View | 2.8 mm: H:100°; V: 53°; D: 120° 3.6 mm: H:83°; V: 44°; D: 99° |
| Close Focus Distance | 2.8 mm: 0.6 m (2.0 ft) 3.6 mm: 0.8 m (2.6 ft) |
| Video Frame Rate | CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 1080p (1920 × 1080); 960 H (960 × 576/960 × 480) |
| Day/Night | Auto (ICR) |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| White Balance | Auto/Area WB |
| Gain Control | Auto |
| Noise Reduction | 2D NR |
| Smart Illumination | Yes |
| Mirror | Yes |
| Privacy Masking | Off/On (8area,rectangle) |
| Detection Mode | Pyroelectric infrared sensor |
| Max. Detection Range | 10 m (32.8 ft), 110° |
| Recommended Installation Height | 2.2 m–3 m (7.2 ft-9.8 ft) |
| Recommended Working Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| White Light Warning | lighting/flash; Alert Duration:5 s–60 s; flash Freq: low/medium/high |
| Sound Warning | Audio 1/2/3; Volume: high/medium/low; duration: 5s–60s; 110 dB |
| Certifications | CE (EN55032:2015, EN61000-3-2:2014, EN61000- 3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) IEC 62368-1:2014 (Second Edition) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power Supply | DC12 V±30% |
| Power Consumption | Max 4.9 W (12 V DC, IR on) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation) |
| Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation) |
| Protection | IP67 |
| Casing | Cover: Metal Rear: Plastic |
| Camera Dimensions | 164.2 mm × 72.4 mm × 83.0mm (6.46" × 2.85" × 3.27") |
| Net Weight | 0.27 kg (0.60 lb) |
| Gross Weight | 0.41 Kg (0.90 lb) |
