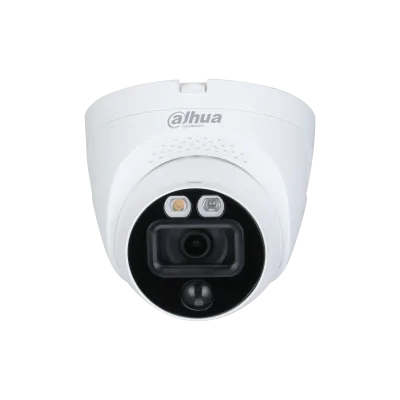

5MP HDCVI Active Deterrence Camera > * The parameters and datasheets below can only be applied to 1500-S2 series. > * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version. > Max 25 fps@5MP (16:9 video output)
| Image Sensor | 5MP |
|---|---|
| Max. Resolution | 1/2.7"CMOS |
| Pixel | 2880 (H) × 1620(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| S/N Ratio | 0.005 Lux/F1.6, 30IRE, 0 Lux IR on |
| Min. Illumination | > 65 dB |
| Illumination Distance | 30 m (98.4 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 1 (IR light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 113°; V: 60°; D: 132° 3.6 mm: H: 90°; V: 48°; D: 104° |
| Iris Type | Fixed iris |
| Close Focus Distance | 2.8 mm: 1.0 m 3.6 mm: 1.5 m |
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 ×1080); 960 H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| White Balance | Auto/Area WB |
| Gain Control | Auto |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
| Detection Mode | Pyroelectric infrared sensor |
| Max. Detection Range | 10 m (32.8 ft), 110° |
| Recommended Installation Height | 2.2 m–3 m (7.2 ft–9.8 ft) |
| Recommended Working Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| White Light Warning | lighting/flash; Alert Duration: 5 s–60 s; flash Freq: low/medium/high |
| Sound Warning | Audio 1/2/3; Volume: high/medium/low; duration: 5 s–60 s; 110 dB |
| Certifications | CE (EN55032:2015, EN61000-3-2:2014, EN61000- 3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) IEC 62368-1:2014 (Second Edition) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power Supply | DC12 V±30% |
| Power Consumption | Max 4.9 W (12 V DC, IR on) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation) |
| Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation) |
| Protection Grade | IP67 |
| Casing | Inner core: Metal + plastic Cover: Plastic |
| Camera Dimensions | Φ109.9 mm × 100.9 mm (Φ4.33" × 3.97") |
| Net Weight | 0.30 kg (0.66 lb) |
| Gross Weight | 0.47 Kg (1.04 lb) |
