Dahua HAC-ME1509EQ-LS - Dome analog HD kamera

Markaya göre filtrele

Dahua HAC-ME1509EQ-LS - Dome analog HD kamera
Dahua

Dahua HAC-ME1509EQ-LS - Dome analog HD kamera

Model kodu
HAC-ME1509EQ-LS
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

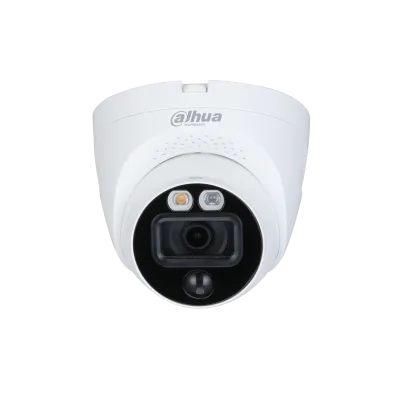

5MP HDCVI Full-Color Active Deterrence Fixed Eyeball Camera

Teknik özellikler

Image Sensor 1/2.7" CMOS
Max. Resolution 2592 (H) × 1944 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s
S/N Ratio >65 dB
Min. Illumination 0.005 Lux/F1.2, 0 Lux warm light on
Illumination Distance 40 m (131.2 ft)
Illumination Type Warm light
Illuminator On/Off Control Auto; manual
Illuminator Number 2 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture 2.8 mm: F1.2 3.6 mm: F1.2
Field of View 2.8 mm: H: 98°; V: 71°; D: 129° 3.6 mm: H: 83°; V: 60°; D: 112°
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 1.6 m (5.25 ft) 3.6 mm: 1.9 m (6.23 ft)
Frame Rate CVI: 5M@20 fps, 4M@25 fps/30 fps, 1080p@25 fps/30 fps; AHD: 5M@20 fps; TVI: 5M@20 fps; CVBS: 960H
Resolution 5M (2592 × 1944); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
BLC Mode BLC/HLC/DWDR
WDR DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 2D
Smart Light Yes
Mirror Off/On
Privacy Masking Off/On (8 Area, Rectangle)
Certifications CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) IEC 62368-1:2014 (Second Edition)
Video Output 1 BNC output Support CVI/TVI/AHD/CVBS
Power Supply 12V ±30% DC
Power Consumption Max 7.0W (12V DC, warm light on)
Detection Component Pyroelectric infrared sensor
Detection Range 10 m (32.8 ft), 110°
Recommended Installation Height 2.2 m–3 m (7.2 ft–9.8 ft)
Recommended Environment Temperature for PIR –10°C to 50°C (14°F to 122°F)
Sound Warning Audio 1/2/3; Volume: high/medium/low; duration: 5 s–30 s; 110 dB
Operating Temperature –40°C to +60°C (–40°F to 140°F); <95% (non-condensation)
Storage Temperature –40°C to +60°C (–40°F to 140°F); <95% (non-condensation)
Ingress Protection IP67
Casing Inner core: Metal Cover: Plastic
Camera Dimensions Φ109.9 mm × 100.9 mm (Φ4.33" × 3.97")
Net Weight 0.30 kg (0.66 lb)
Gross Weight 0.49 kg (1.08 lb)

Dokümanlar

Data Sheet
