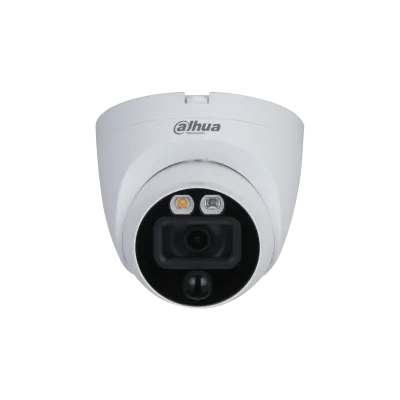

Dahua HAC-ME1800EQ-L - Dome analog HD kamera

Markaya göre filtrele

Dahua HAC-ME1800EQ-L - Dome analog HD kamera
Dahua

Dahua HAC-ME1800EQ-L - Dome analog HD kamera

Model kodu
HAC-ME1800EQ-L
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

4K Real-time HDCVI Active Deterrence Fixed IR Eyeball Camera

Teknik özellikler

Image Sensor 1/2.7" CMOS
Max. Resolution 3840 (H) × 2160 (V)
Pixel 4K
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s
Min. Illumination 0.02 Lux/F2.0, 30 IRE, 0 Lux IR on
S/N Ratio ＞65 dB
Illumination Distance 20 m (65.6 ft)
Illumination Type IR
Illuminator On/Off Control Auto/Manual
Illuminator Number 1 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm
Max. Aperture 2.8 mm: F2.0
Field of View 2.8 mm: D: 125°; H: 105°; V: 56°
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 1.0 m (3.3 ft)
Frame Rate CVI: 4K@25/30 fps; 4K@15 fps; 5M@20 fps; 4M@25 fps/30 fps; AHD: 4K@15 fps; TVI: 4K@15 fps; CVBS: 960H
Resolution 4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960 × 576/960 × 480)
Day/Night ICR auto switch
BLC Mode BLC/HLC/DWDR
WDR DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 2D
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 Area, Rectangle)
Certifications CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) IEC 62368-1:2014 (Second Edition)
Video Output 1 BNC output Support CVI/TVI/AHD/CVBS
Power Supply 12V ±30% DC
Power Consumption Max 7.2W (12V DC, IR on)
Detection Component Pyroelectric infrared sensor
Detection Range 10 m(32.8 ft), 110°
Recommended Installation Height 2.2 m–3 m (7.2 ft-9.8 ft)
Recommended Environment Temperature for PIR –10°C to 50°C (14°F to 122°F)
White Light Warning Solid: 5 s–30 s; flash: 5 s–30 s; frequency: high/medium/low
Operating Temperature –40°C to +60°C (–40°F to 140°F);<95% (non-condensation)
Storage Temperature –40°C to +60°C (–40°F to 140°F);<95% (non-condensation)
Ingress Protection IP67
Casing Inner core: Metal + plastic Cover: Plastic
Camera Dimensions Φ109.9 mm × 100.9 mm (Φ4.33" × 3.97")
Net Weight 0.30 kg (0.66 lb)
Gross Weight 0.39 kg (1.08 lb)

Dokümanlar

Data Sheet
