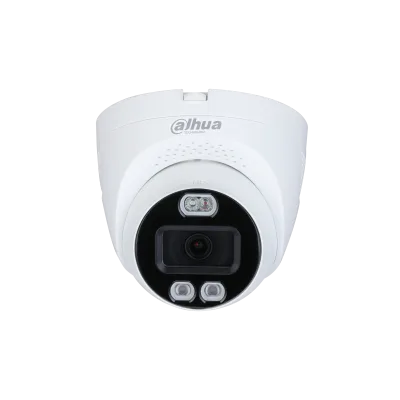

Dahua HAC-ME1800TQ-PV - Dome analog HD kamera

Markaya göre filtrele

Dahua HAC-ME1800TQ-PV - Dome analog HD kamera
Dahua

Dahua HAC-ME1800TQ-PV - Dome analog HD kamera

Model kodu
HAC-ME1800TQ-PV
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

4K Real-time HDCVI Active Deterrence Fixed IR Eyeball Camera > IP67, 12V±30% DC

Teknik özellikler

Image Sensor 1/2.7" CMOS
Max. Resolution 3840 (H) × 2160 (V)
Pixel 4K
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s
Min. Illumination 0.02 Lux/F2.0, 30 IRE, 0 Lux IR on
S/N Ratio ＞65 dB
Illumination Distance 60 m (196.9 ft)
Illumination Type IR
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture 2.8 mm: F2.0 3.6 mm: F2.0
Field of View 2.8 mm: D: 125°; H: 105°; V: 56° 3.6 mm: D: 104°; H: 87°; V: 47°
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft)
DORI Distance 2.8 mm: D: 74.7 m (245.1 ft); O: 29.9 m (98.1 ft); R: 14.9 m (48.9 ft); I: 7.5 m (24.6 ft) 3.6 mm: D: 106.7 m (350.1 ft); O: 42.7 m (140.1 ft); R: 21.3 m (69.9 ft); I: 10.7 m (35.1 ft)
Frame Rate CVI: 4K@25/30 fps; 4K@15 fps; 5M@20 fps; 4M@25 fps/30 fps; AHD: 4K@15 fps; TVI: 4K@15 fps; CVBS: 960H
Resolution 4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960 × 576/960 × 480)
Day/Night ICR auto switch
BLC Mode BLC/HLC/DWDR
WDR DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 2D
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 Area, Rectangle)
Certifications CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) IEC 62368-1:2014 (Second Edition)
Video Output 1 BNC output Support CVI/TVI/AHD/CVBS
Alarm out 1ch alarm out
Red/Blue Light Warning Flash: 5 s–30 s; frequency: high/medium/low
Sound Warning Audio 1/2/3; Volume: high/medium/low; duration: 5 s–30 s; 110 dB
Power Supply 12V ±30% DC
Power Consumption Max 8.5W (12V DC, IR on)
Operating Temperature –40°C to +60°C (–40°F to 140°F);<95% (non-condensation)
Storage Temperature –40°C to +60°C (–40°F to 140°F);<95% (non-condensation)
Ingress Protection IP67
Casing Inner core: Metal+plastic Cover: Plastic
Camera Dimensions Φ109.9 mm × 100.9 mm (Φ4.33" × 3.97")
Net Weight 0.32 kg (0.71 lb)
Gross Weight 0.50 kg (1.10 lb)

Dokümanlar

Data Sheet
