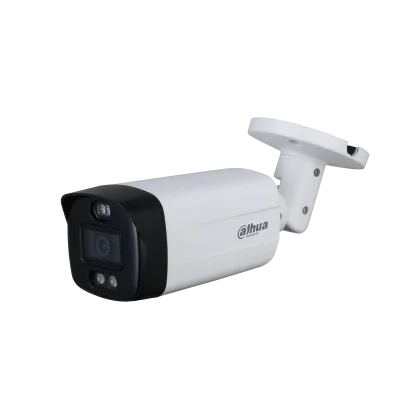

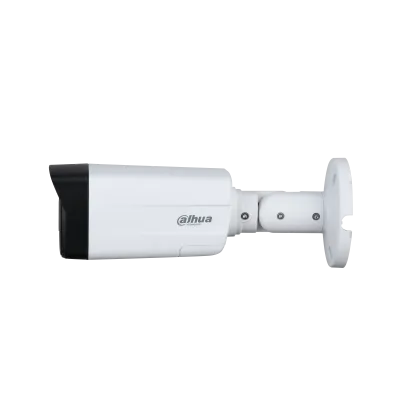

Dahua HAC-ME1809TH-A-PV-POC - Dome analog HD kamera

Markaya göre filtrele

Dahua HAC-ME1809TH-A-PV-POC - Dome analog HD kamera
Dahua

Dahua HAC-ME1809TH-A-PV-POC - Dome analog HD kamera

Model kodu
HAC-ME1809TH-A-PV-POC
Sistem
Kamera sistemi
Kategori
Dome analog HD kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

4K HDCVI Full-Color Active Deterrence Fixed Bullet Camera

Teknik özellikler

Image Sensor 1/2.8" CMOS
Max. Resolution 3840 (H) × 2160 (V)
Pixel 4K
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3 s–1/100000 s NTSC: 1/4 s–1/100000 s
S/N Ratio >65 dB
Min. Illumination 0.005 Lux/F1.6, 0 Lux warm light on
Illumination Distance 40 m (131.2 ft)
Illumination Type Warm light
Illuminator On/Off Control Auto; manual
Illuminator Number 2 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens Type Fixed-focal
Mount Type M12
Focal Length 3.6 mm
Max. Aperture 3.6 mm: F1.6
Field of View 3.6 mm: H: 89°; V: 46°; D: 105°
Iris Type Fixed iris
Close Focus Distance 3.6 mm: 2.2 m (7.22 ft)
Frame Rate CVI: 4K@15 fps/25 fps/30 fps, 4M@25 fps/30 fps; AHD: 4K@15 fps; TVI: 4K@15 fps
Resolution 4K (3840 × 2160); 4M (2560 × 1440)
BLC Mode BLC/HLC/DWDR
WDR DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 2D
Smart Light Yes
Mirror Off/On
Privacy Masking Off/On (8 Area, Rectangle)
Certifications CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) IEC 62368-1:2014 (Second Edition)
Video Output 1 BNC output Support CVI/TVI/AHD
Audio Input Built-in mic
Alarm out 1ch alarm out
Red/Blue Light Warning Flash: 5 s–30 s; frequency: high/medium/low
Sound Warning Audio 1/2/3; Volume: high/medium/low; duration: 5 s–30 s; 110 dB
Power Supply POC(only CVI)/12V±30% DC
Power Consumption Max 7.7W(12V DC, warm light on)PoC(AT)
Operating Temperature –40°C to +60°C (–40°F to 140°F); <95% (non-condensation)
Storage Temperature –40°C to +60°C (–40°F to 140°F); <95% (non-condensation)
Ingress Protection IP67
Casing Cover: Metal Rear: Plastic Pedestal: Metal
Camera Dimensions 240.7 mm × Φ90.7 mm (9.48" × Φ3.57")
Net Weight 0.44 kg (0.97 lb)
Gross Weight 0.70 kg (1.54 lb)

Dokümanlar

Data Sheet

Bu ürünü satan firmalar

3 firma
AMERKEZ TEKONOLJİ VE YAZILIM
Küçükçekmece, İstanbul
BİGES GÜVENLİ HAYAT TEKNOLOJİLERİ A.Ş.
Şişli, İstanbul
OKİSAN GÜVENLİK TEKNOLOJİLERİ SAN. VE TİC. A.Ş.
Şişli, İstanbul
