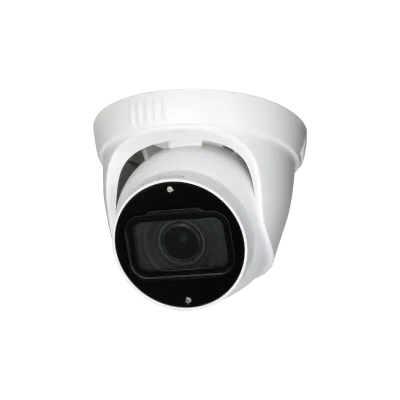

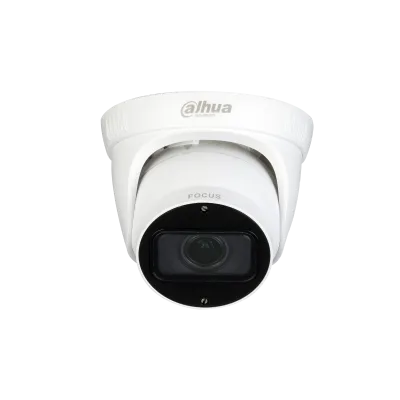

Dahua HAC-T3A21-VF
Markaya göre filtrele
ABB
Absen
Ajax
APart Audio
Aruba
Aselsan
AselsanNET
Astor Şarj
ASUS
Atlas Turnike
Bawcon
Biwin
Bosch
Bticino
BULLWARK
CamBox
CAME
Cenova
Commax
Dahua
Dayline
Dayzip
Decon
Dell
DSC Alarm
EATON
Endikal
Eşarj
EZVIZ
FAAC
Fanvil
Finder
Formrack
Fujitron
Gigaset
Global
GVD
Hikvision
HiLook
Hochiki
HP
Imou
Inform
Inter-M
Jabra
Kamera Kutusu
Karel
Lande
Legrand
Leyard
LifeSmart
Mavili
Multitek
Netelsan
NETGEAR
Neutron
Nice
Notifier
Omada
Osram
Özak
Panasonic
Paradox
Philips
Proxsen
QNAP
Rapoo
Reyee
Ruijie
Schneider Electric
Seagate
Suprema
Teknim
Teknosec
Teletek
Tenda
Tescom
Tiandy
TOA
Toshiba
TP-Link
Ttec
Ubiquiti
Unilumin
Uniwiz
UNV
Vestel
vGUARD
Westa
Western Digital
Wisetech
ZES
ZKTeco
ZYXEL
Eşleşen marka yok.
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
2MP HDCVI IR Eyeball Camera > Max. 30 fps@1080p > CVI/CVBS/AHD/TVI switchable > 2.7-12mm vari-focal lens > Max. IR length 40 m, Smart IR > IP67,12 VDC
Teknik özellikler
| Pixel | 2 MP |
|---|---|
| Image Sensor | 2MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.04 [email protected] (Color, 30 IRE) 0.004 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 40 m (131.23 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR light) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355° |
| Lens Type | Manual Vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 - 12 mm |
| Max. Aperture | F1.7 |
| Field of View | H: 102°–32°; V: 54°–18°; D: 121°–37° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Video Frame Rate | CVI: PAL: 1080p@25 fps; 720p@25 fps NTSC: 1080p@30 fps; 720p@30 fps TVI: PAL: 1080p@25 fps; 720p@25 fps NTSC: 1080p@30 fps; 720p@30 fps AHD: PAL: 1080p@25 fps; 720p@25 fps NTSC: 1080p@30 fps; 720p@30 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480) |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | BLC; HLC; DWDR |
| WDR | DWDR |
| White Balance | Auto; Area white balance |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D NR |
| Smart Illumination | Yes |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Certifications | CE (EN55032: 2015, EN61000-3-2: 2014, EN61000-3-3: 2013, EN55024: 2010+A1: 2015, EN55035: 2017, EN50130-4: 2011+A1: 2014, EN62368-1: 2014+A11: 2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max. 4.6 W (12 VDC, IR on) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to 140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Protection | IP67 |
| Casing | Metal dome top + plastic |
| Product Dimensions | Φ122 mm × 106.2 mm (Φ4.80" × 4.18") |
| Packaging Dimensions | 155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31") |
| Net Weight | 0.39 kg (0.86 lb) |
| Gross Weight | 0.51 kg (1.12 lb) |
| Installation | Wall mount; ceiling mount; horizontal pole mount |
