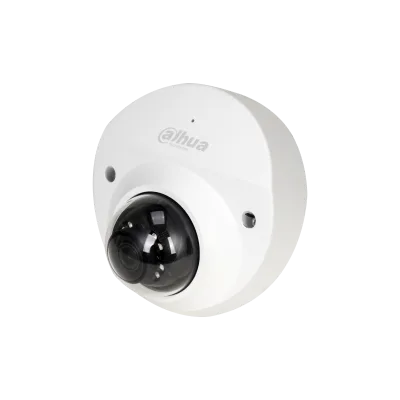

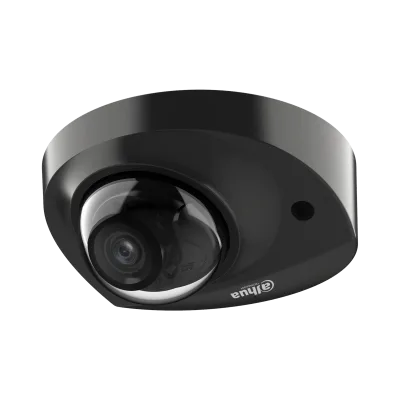

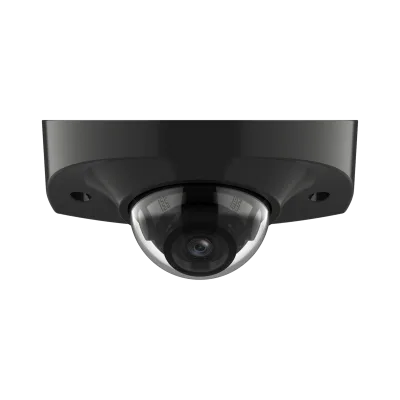

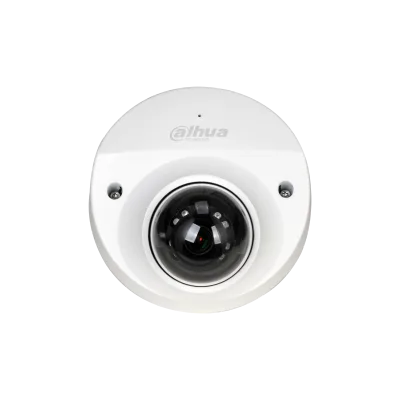

Dahua IPC-HDBW2231F-AS-S2 - Dome IP kamera

Markaya göre filtrele

Dahua IPC-HDBW2231F-AS-S2 - Dome IP kamera
Dahua

Dahua IPC-HDBW2231F-AS-S2 - Dome IP kamera

Model kodu
IPC-HDBW2231F-AS-S2
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2MP Lite IR Fixed-focal Dome Network Camera > 2-MP, 1/2.8" CMOS image sensor, low illuminance, high image definition. > Outputs max. 2MP (1920 × 1080) @25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in IR LED, max. IR distance: 30 m. > RoI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent detection: Intrusion, tripwire. > Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection. > Alarm: 1 in, 1 out; audio: 1 in, 1 out; built-in Mic; supports max. 256 GB Micro SD card. > 12V DC/PoE power suppply. > IP67, IK10 protection.

Teknik özellikler

Image Sensor 1/2.8" CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Minimum Illumination 0.002 [email protected] (Color, 30 IRE) 0.0002 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 30 m (98.4 ft)(IR)
Illuminator On/Off Control Auto; Manual
Illuminator Number 8 (IR LED)
Pan/Tilt/Rotation Range Pan: –30° –30° Tilt: 0° –80° Rotation: 0°–360°
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View 2.8 mm: H: 108°; V: 56°; D: 128° 3.6 mm: H: 88°; V: 46°; D: 104°
Iris Type Fixed
Close Focus Distance 2.8 mm: 0.7 m (2.3 ft) 3.6 mm: 1.1 m (3.6 ft)
IVS Tripwire; intrusion
Video Compression H.265; H.264; H.264B; MJPEG (only supported by sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 1920 × 1080 @(1fps–25/30 fps) Sub stream: 704 × 576 @(1fps–25/30 fps) 704 × 480 @(1fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G.726
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception; local alarm
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20
Storage FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser IE; Chrome; Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5mA 3V–5V DC
Alarm Output 1 channel out: 300mA 12V DC
Power Supply 12V DC/PoE
Power Consumption <5.4W
Operating Temperature –40°C to +60°C (–40°F to +140°F)/less than ≤ 95% RH
Storage Temperature –40°C to +60°C (–40°F to +140°F)
Protection IP67; IK10
Casing Metal
Dimensions 55 mm × Φ108.9 mm (2.2" × Φ4.3")
Net Weight 0.38 kg (0.8 lb)
Gross Weight 0.52 kg (1.1 lb)

Dokümanlar

Data Sheet

Bu ürünü satan firmalar

3 firma
AMERKEZ TEKONOLJİ VE YAZILIM
Küçükçekmece, İstanbul
BİGES GÜVENLİ HAYAT TEKNOLOJİLERİ A.Ş.
Şişli, İstanbul
OKİSAN GÜVENLİK TEKNOLOJİLERİ SAN. VE TİC. A.Ş.
Şişli, İstanbul
