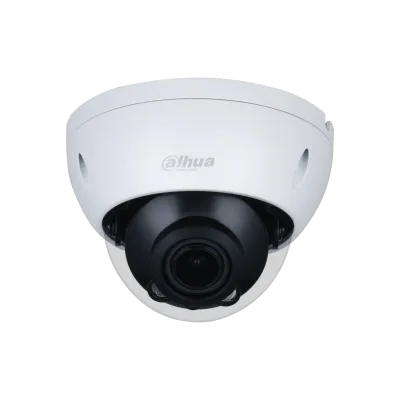

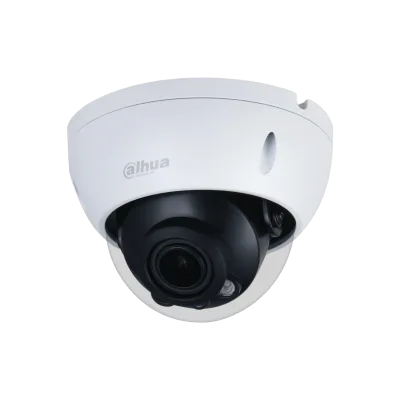

Dahua IPC-HDBW3241R-ZS - Dome IP kamera

Markaya göre filtrele

Dahua IPC-HDBW3241R-ZS - Dome IP kamera
Dahua

Dahua IPC-HDBW3241R-ZS - Dome IP kamera

Model kodu
IPC-HDBW3241R-ZS
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2MP IR Vari-focal Dome WizSense Network Camera > 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition > Outputs max. 2MP (1920 × 1080)@30 fps > H.265 codec, high compression rate, low bit rate > Built-in IR LED, max. IR distance: 40 m > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments > Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes > Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human) > Abnormality detection: Motion detection, video tampering, scene changing, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection > Supports max. 256 G Micro SD card > 12V DC/POE power supply > IP67, IK10 protection > SMD Plus

Teknik özellikler

Image Sensor 1/2.8”2Megapixel progressive CMOS
Max. Resolution 1920 (H) ×1080 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.002 [email protected] (Color, 30IRE) 0.0002 [email protected] (B/W, 30IRE) 0 Lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 40 m (131.23 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–355°; Tilt: 0°–75°; Rotation: 0°–355°
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Field of View Horizontal: 108°–28° Vertical: 57° –16° Diagonal: 130° –33°
Iris Type Fixed
Close Focus Distance 0.8 m (2.6 ft)
Perimeter Protection Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video Compression H.265; H.264; H.264H; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate Main stream (1920 × 1080@1–25/30 fps) sub stream(704 × 576@1–25 fps/704 × 480@1–30 fps) third stream(1280 × 720@1–25/30 fps)
Stream Capability 3 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Alarm Event No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection;scene changing; intensity change; tripwire; intrusion; SMD
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone; Genetec
Scene Self-adaptation (SSA) Yes
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD Card (support max. 256 G); NAS
Browser IE: IE8, IE9, IE11 Chrome Firefox
Management Software Smart PSS, DSS, DMSS
Mobile Phone IOS; Android
Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power Supply 12V DC/PoE (802.3af)
Power Consumption <8W

Dokümanlar

Data Sheet

Bu ürünü satan firmalar

3 firma
AMERKEZ TEKONOLJİ VE YAZILIM
Küçükçekmece, İstanbul
BİGES GÜVENLİ HAYAT TEKNOLOJİLERİ A.Ş.
Şişli, İstanbul
OKİSAN GÜVENLİK TEKNOLOJİLERİ SAN. VE TİC. A.Ş.
Şişli, İstanbul
