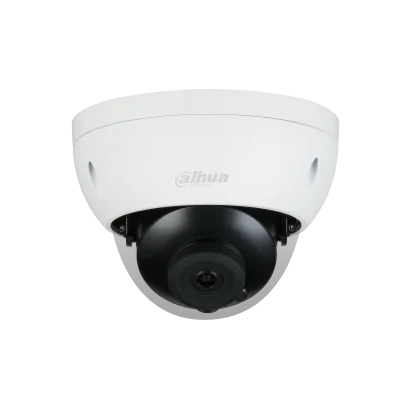

Dahua IPC-HDBW5541E-ZE-OPAT - Dome IP kamera
Markaya göre filtrele
Eşleşen marka yok.
Dahua IPC-HDBW5541E-ZE-OPAT - Dome IP kamera
- Model kodu
- IPC-HDBW5541E-ZE-OPAT
- Sistem
- Kamera sistemi
- Kategori
- Dome IP kamera
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
5 MP DHOP Vandal-proof IR Dome Network Camera > 5 MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 5 MP (2592 × 1944)@20 fps and supports 4 MP (2688 × 1520)@25/30 fps > H.265 codec, high compression rate, ultra-low bit rate. > Built-in IR LED; the max. IR illumination distance is 50 m. > ROI, SMART H.264+/H.265+,flexible coding, applicable to various bandwidth and storage environments > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, appli cable to various monitoring scenes. > Abnormality detection: motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error,network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card. > 12 VDC/24V AC/PoE power supply, ePoE, transmission over long distance, easy for installations of various scenes. > IP67/IK10 protection.
Teknik özellikler
| Computing Power | 1T computing power for enhanced performance |
|---|---|
| Flash | 58M |
| System Memory | 380M |
| Multimedia Memory | 256M |
| DHOP Partners | A.I.Tech, ACIC, Grekkom, Kobi, Retailflux, Siteeye, TechnoAware, etc. ( https://depp.dahuasecurity.com/OpenPlatform) |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2592 (H) × 1944 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 [email protected] (Color,30 IRE) 0.0005 [email protected] (B/W,30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | 50 m (164 ft) (IR) |
| Illuminator On/Off Control | Auto, manual |
| Illuminator Number | 3 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt:0°–75° Rotation:0°–355° |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Horizontal: 104°-29° Vertical: 72°-21° Diagonal: 138°-36° |
| Iris Control | Auto |
| Close Focus Distance | 0.8 m (2.6 ft) |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+;Smart H.264+ |
| Video Frame Rate | Main stream: 2592 × 1944@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 5M (2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); VGA (640 x 480); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; audio detection; voltage detection; external alarm; security exception |
| Network Port | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;DHOP SDK |
| User/Host | 20 (Total bandwidth: 72 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE8/9/11 Chrome Firefox |
| Management Software | Smart PSS; DSS |
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5 VDC |
| Alarm Output | 1 channel out: 300 mA 12 VDC |
| Power Supply | 12 VDC/AC24V/PoE (802.3af) |
| Power Consumption | Basic power consumption: 4.9W (12 VDC); 5.1 W (24V AC); 5.2 W (PoE) Max. power consumption (max. stream + IR LED + focus): 12.4W (12 VDC); 11.9 W (24V AC); 11.6 W (PoE) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Protection | IP67; IK10 |
| Casing | Metal |
| Product Dimensions | 117.9 mm × Φ159.0 mm (4.6" × Φ6.3") |
| Net Weight | 0.95 kg (2.1 lb) |
| Gross Weight | 1.2 kg (2.6 lb) |
