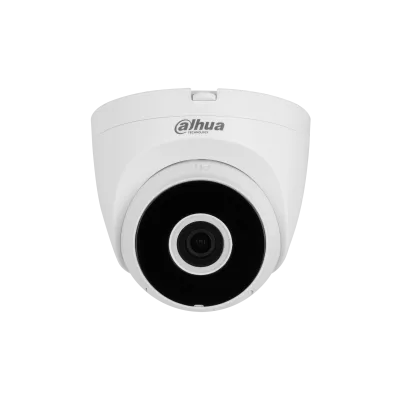

Dahua IPC-HDW1230DT-STW - Dome IP kamera

Markaya göre filtrele

Dahua IPC-HDW1230DT-STW - Dome IP kamera
Dahua

Dahua IPC-HDW1230DT-STW - Dome IP kamera

Model kodu
IPC-HDW1230DT-STW
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2 MP IR Fixed-focal WiFi Eyeball Network Camera > 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image. > Outputs max. 2 MP (1920 × 1080) @25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in IR LED, and the max. illumination distance is 30 m. > SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments. > DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes. > Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access. > Built-in dual-antenna 2.4G Wi-Fi that covers a range of up to 120 m in an open area. > Supports max.256 G Micro SD card.Built-in MIC and speaker. > 12 VDC power supply. > IP67 protection.

Teknik özellikler

Image Sensor 1/2.8" CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 16 MB
RAM 64 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.025 [email protected] (Color, 30 IRE) 0.0025 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 30 m (98.43 ft)
Illuminator On/Off Control Auto; Manual
Illuminator Number 1 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F2.0
Field of View 2.8 mm: Horizontal: 100°; Vertical: 53°; Diagonal: 120° 3.6 mm: Horizontal: 86°; Vertical: 43°; Diagonal: 102°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 1.0 m (3.28 ft)
Video Compression H.264B; H.264; H.264H; H.265
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 1920 × 1080 (1–25/30 fps) Sub stream: 640 × 480@(1–25 fps) 640 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720)
Bit Rate Control CBR/VBR
Video Bit Rate H264: 24 kbps–4096 kbps H265: 9 kbps–4096 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
WDR DWDR
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Smart Illumination Yes
Image Rotation 0°/180°
Mirror Yes
Built-in MIC Yes
Built-in Speaker Yes
Audio Compression G.711a; G.711Mu
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change
Network Port RJ-45 (10/100 Base-T)
Wi-Fi IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G
Wireless Range Up to 120m(The performance varies based on actual environment)
SDK and API Yes
Cyber Security Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP
Interoperability ONVIF (Profile S/Profile T); CGI; P2P
User/Host 6 (Total bandwidth: 36 M)
Storage Micro SD card (support max. 256 GB)
Browser IE Chrome Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS; Android
Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C
Power Supply 12 VDC
Power Consumption Basic: 1.9 W (12 VDC) Max. (H.265+IR intensity): 6.1 W (12 VDC)
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤ 95%
Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Protection IP67
Casing Inner core: Metal + Plastic Cover: Plastic
Product Dimensions Ø109.9 mm × 102.2 mm (Ø4.33" × 4.02")
Net Weight 352 g (0.77 lb)
Gross Weight 530 g (1.17 lb)

Dokümanlar

Data Sheet
