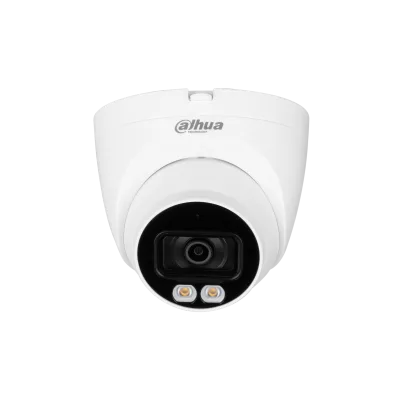

Dahua IPC-HDW2239T-AS-LED-S2 - Dome IP kamera
Dahua

Dahua IPC-HDW2239T-AS-LED-S2 - Dome IP kamera

Model kodu
IPC-HDW2239T-AS-LED-S2
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2MP Lite Full-color Fixed-focal Eyeball Network Camera > 2-MP, 1/2.8" CMOS image sensor, low illuminance, high image definition. > Outputs max. 2MP (1920 × 1080) @25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in warm lights, max. illumination distance: 30 m. > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent detection: Intrusion, tripwire. > Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection. > Supports max. 256 GB Micro SD card and built-in Mic. > 12V DC/PoE power supply. > IP67 protection.

Teknik özellikler

Image Sensor 1/2.8" CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Minimum Illumination 0.0017 [email protected] (Color, 30 IRE) 0.0002 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 30 m (98.4 ft)(Warm light)
Illuminator On/Off Control Auto; Manual
Illuminator Number 2 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.0
Field of View 2.8 mm: H: 107°; V: 55°; D: 127° 3.6 mm: H: 91°; V: 47°; D: 109°
Iris Type Fixed
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft) 3.6 mm: 1.3 m (4.3 ft)
IVS Tripwire; intrusion
Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 1920 × 1080 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Built-in MIC Yes
Audio Compression G.711A; G.711Mu; G.726
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20 (Total bandwidth: 72 M.)
Storage FTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser IE; Chrome; Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Dokümanlar

Data Sheet
