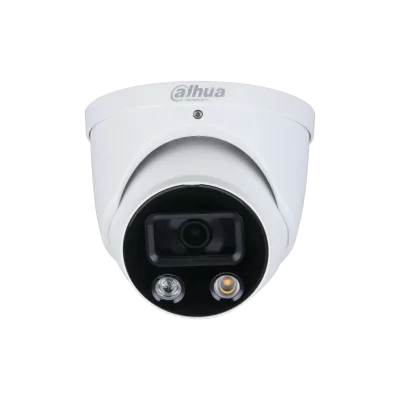

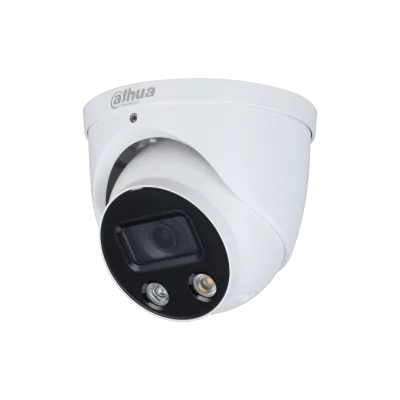

Dahua IPC-HDW3449H-AS-PV-S3 - Dome IP kamera

Markaya göre filtrele

Dahua IPC-HDW3449H-AS-PV-S3 - Dome IP kamera
Dahua

Dahua IPC-HDW3449H-AS-PV-S3 - Dome IP kamera

Model kodu
IPC-HDW3449H-AS-PV-S3
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

4 MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera > 4 MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 4 MP (2688 × 1520)@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m. > ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human). > Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk. > 12 VDC/PoE power supply. > IP67 protection. > Sound and light alarm (red and blue lights). > SMD 3.0. > One press arming/disarming through alarm input.

Teknik özellikler

Image Sensor 1/2.7" CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.003 [email protected] (Color, 30 IRE) 0.0003 [email protected] (B/W, 30 IRE) 0 lux (illuminator on)
S/N Ratio ﹥ 56 dB
Illumination Distance 30 m (98.43 ft) (IR) 30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR LED) 1 (warm light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Field of View 2.8 mm: Horizontal: 101°× Vertical: 53°× Diagonal: 120° 3.6 mm: Horizontal: 82°× Vertical: 44°× Diagonal: 96°
Iris Type Fixed
Close Focus Distance 2.8 mm: 1.5 m (4.92 ft) 3.6 mm: 2.2 m (7.22 ft)
IVS (Perimeter Protection) Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD 3.0 Less false alarm, longer detection distance
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 2688 × 1520@ (1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@ (1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host 20 (Total bandwidth: 72 M)
Storage FTP; SFTP; Micro SD card (Support max. 256 G); NAS
Browser IE: IE8/9/11 Chrome Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone iOS; Android
Certification CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5 mA 3V–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 1.75 W (12 VDC); 3.6 W (PoE) Max. (H.265+main stream/IR intensity+warm light on): 6.4W (12 VDC) 8.6 W (PoE)
Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade IP67
Casing Metal
Dimensions 110.9 mm × Φ122.0 mm (4.4" × Φ4.8")
Net Weight 745 g (163.1 lb)
Gross Weight 915 g (200.6 lb)

Dokümanlar

Data Sheet

Bu ürünü satan firmalar

3 firma
AMERKEZ TEKONOLJİ VE YAZILIM
Küçükçekmece, İstanbul
BİGES GÜVENLİ HAYAT TEKNOLOJİLERİ A.Ş.
Şişli, İstanbul
OKİSAN GÜVENLİK TEKNOLOJİLERİ SAN. VE TİC. A.Ş.
Şişli, İstanbul
