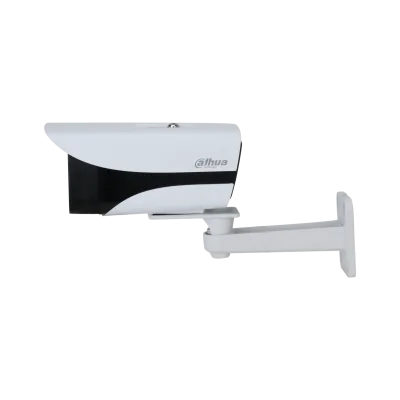

Dahua IPC-HFW2231M-AS-I2-B-S2 - Bullet IP kamera
Dahua

Dahua IPC-HFW2231M-AS-I2-B-S2 - Bullet IP kamera

Model kodu
IPC-HFW2231M-AS-I2-B-S2
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2MP Lite IR Fixed-focal Bullet Network Camera > 2MP 1/2.8" CMOS image sensor, low luminance, and high definition image. > Outputs max. 2MP (1920 × 1080)@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in IR LED, and the max. illumination distance is 50 m. > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, appli cable to various monitoring scenes. > Intelligent monitoring: Intrusion, tripwire. > Abnormality detection: Motion detection, privacy masking, audio de tection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 G micro SD card. > 12V DC/PoE power supply. > IP67 protection.

Teknik özellikler

Image Sensor 1/2.8" CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.002 [email protected] (Color, 30 IRE) 0.0002 [email protected] (B/W, 30 IRE) 0 Lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 50 m (164.04 ft) (IR)
Illuminator On/Off Control Auto; manual
Illuminator Number 2 (IR LED)
Lens Type Fixed-focal
Lens Mount M12
Focal Length 3.6 mm; 6 mm
Max. Aperture 3.6 mm: F1.6 6 mm: F1.6
Field of View 3.6 mm: Horizontal: 88°; Vertical: 44°; Diagonal: 105° 6 mm: Horizontal: 54°; Vertical: 29°; Diagonal: 63°
Iris Control Fixed
Close Focus Distance 3.6 mm: 1.3 m (4.27 ft) 6 mm: 2.5 m (8.20 ft)
IVS Tripwire; intrusion
Video Compression H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 1920 × 1080@1–25/30 fps Sub stream: 704 × 576@1–25 fps 704 × 480@1–30 fps *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio Compression G.711a; G.711Mu; G.726; PCM
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio abnormality; voltage detection; external alarm; security exception
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host 20 (Total bandwidth: 48 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE Chrome Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client IOS; Android
Certifications CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Power Supply 12V DC/PoE (802.3af)
Power Consumption Basic: 1.8 W (12 V DC); 2.4 W (PoE) Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 5.5 W (12 V DC); 6.1 W (PoE)
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤ 95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67
Casing Metal + plastic
Product Dimensions 194.1 mm × 96.4 mm × 89.5 mm (7.6"×3.8"×3.5") (L × W × H)
Net Weight 0.73kg (1.6 lb)
Gross Weight 1.22kg (2.7 lb)
