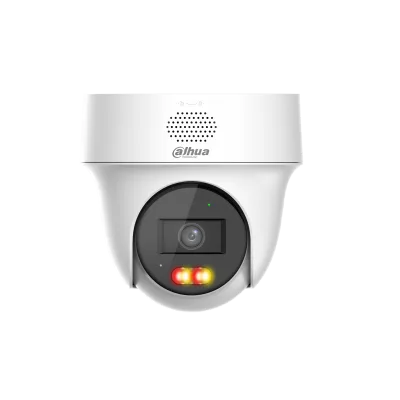

Dahua IPC-PT1439H-PV - PTZ IP kamera

Markaya göre filtrele

Dahua IPC-PT1439H-PV - PTZ IP kamera
Dahua

Dahua IPC-PT1439H-PV - PTZ IP kamera

Model kodu
IPC-PT1439H-PV
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

4MP Smart Dual Light Active Deterrence Network PT Camera > 1/2.8" 4Megapixel CMOS. > Max. 25/30 fps@4MP. > H.265 Encoding. > Human/Vehicle Detection. > Perimeter Protection. > Active Deterrence. > Smart Dual Light. > Two-way Talk. > Easy App Controls.

Teknik özellikler

Image Sensor 1/2.8" CMOS
Pixel 4 MP
Max. Resolution 2560 (H) × 1440 (V)
ROM 128 MB
RAM 128 MB
Electronic Shutter Speed 1 s–1/30,000 s
Scanning System Progressive
Min. Illumination 0.05 [email protected] (Color, 30 IRE); 0.005 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on);
Illumination Distance 30 m (98.43 ft) (IR + warm light-only warm light is enbaled) 30 m (98.43 ft) (IR + warm light-only IR is enbaled)
Illuminator On/Off Control Manual; auto; off
Illuminator Number 2 (IR + warm light)
Focal Length 3.6 mm; 2.8 mm
Max. Aperture F1.6
Field of View 2.8 mm: H: 94°; V: 51°; D: 110°3.6 mm: H: 78°; V: 42°; D: 92°
Close Focus Distance 2.8 mm: 1.2 m (3.93 ft)3.6 mm: 1.5 m (4.92 ft)
Iris Control Fixed
DORI Distance LensDetectObserveRecognizeIdentify2.8 mm 56.0 m( 183.73 ft) 22.4 m( 73.49 ft) 11.2 m( 36.75 ft) 5.6 m ( 18.37 ft)3.6 mm 72.0 m( 236.22 ft) 28.8 m( 94.49 ft) 14.4 m( 47.24 ft) 7.7 m ( 25.26 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Pan/Tilt Range Pan: 0° to 345°; Tilt: 0° to +90°
Manual Control Speed Pan: 0.1°–37.66°/s; Tilt: 0.1°–32.61°/s
Preset Speed Pan: 0.1°–37.19°/s; Tilt: 0.1°–30.82°/s
Preset 50
Power-off Memory Yes
Idle Motion Preset
IVS Yes
Human Detection Yes
Vehicle Detection Yes
Light Warning Warm light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low
Sound Warning Offers 1 sound alarm and 10 custom sound alarms can be imported; Sound can be set from 0%–100%; Play times can be set from 1-10.
Video Compression Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
Streaming Capability 1 stream
Resolution 4M (2560 × 1440);1080p (1920 × 1080); 720p (1280 × 720); 640 × 360 (640 × 360); QVGA (320 × 240)
Video Frame Rate Main stream: 4M/1080p/720p/640 × 360@(1–25/30 fps) Sub stream 1: 640 × 360/QVGA@(1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H264: 16 kbps–8,192 kbps H265: 6 kbps–8,192 kbps
Day/Night Auto (ICR); Color/B/W
BLC Yes
WDR 120 dB
HLC Yes
White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Defog Electronic
Image Rotation 180°
S/N Ratio ≥55 dB
Audio Compression PCM; G.711A; G.711Mu; G.726
Built-in MIC Yes
Built-in Speaker Yes
Network Port RJ-45 (10/100 Base-T)
Network Protocol HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;DHCP;DNS;DDNS;IPv6;SSL;ARP;RTCP;RTP;IP Filter
Interoperability CGI;SDK;ONVIF (Profile S & Profile T)
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage FTP
Browser IE: IE 7 and later versions; Chrome; Firefox; Safari
Management Software Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player
Mobile Client iOS;Android
Abnormal Sound Alarm Yes
Certifications EN 62368-1;EN 55032;EN 61000-3-3;EN IEC 61000-3-2;EN 50130-4;EN 55035;
Audio Input 1 channel (built-in mic)
Audio Output 1 channel (built-in speaker)
Alarm Linkage Capture; preset; recording; audio; sending email
Alarm Event Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection;
Power Supply 12 VDC, 1.0 A ± 10% PoE (802.3af)
Power Consumption 12 VDC, 1.0 A ± 10%: Basic: 3 W; Max: 11 W (illuminator+speaker+PTZ operation) PoE（802.3af） Basic: 4 W; Max: 12 W (illuminator+speaker+PTZ operation)
Power Adapter Optional
Operating Temperature –30 °C to +55 °C (–22 °F to +122 °F)
Operating Humidity ≤95%
Protection IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection
Product Dimensions 128.4 mm × Φ127.3 mm (5.06" × Φ5.01")
Net Weight 0.41 kg (0.9 lb)
Gross Weight 0.5 kg (1.1 lb)

Dokümanlar

Data Sheet
