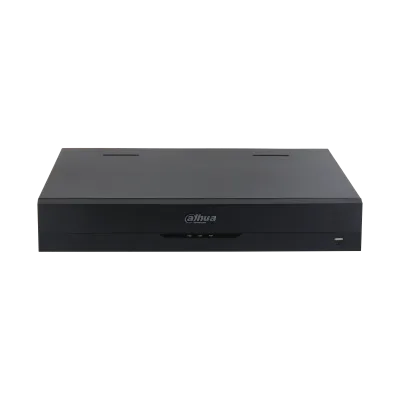

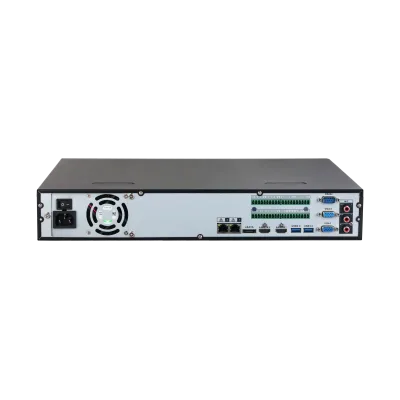

Dahua NVRD04-16-5E - NVR kayıt cihazı
Dahua

Dahua NVRD04-16-5E - NVR kayıt cihazı

Model kodu
NVRD04-16-5E
Sistem
Kamera sistemi
Kategori
NVR kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Dahua 16CH 4HDD 1.5U NETWORK VIDEO RECORDER > Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats. > Max. decoding capability: 32 × 1080p@30 fps or 16 × 4MP@30 fps. > Max. 384/384/384 Mbps incoming/recording/outgoing bandwidth. > Supports IP cameras with a resolution up to 32 MP. ANR > Supports AcuPick with up to 16 channels. > Supports N+M cluster,iSCSI. > AI by Recorder supports 2-channel face detection and recognition, up to 20 face databases and 20,000 face images; 4-channel perimeter protection; 8-channel SMD Plus. > AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, PPE and people counting. > Supports EPTZ, and one-click arming and disarming.

Teknik özellikler

Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web, Local GUI
AI by Recorder Face detection; face recognition; perimeter protection; SMD Plus
AI by Camera Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE
AcuPick AI by Camera + Recorder Max. 16-channel, 1 combined event per channel/s
Perimeter Performance AI by Recorder (Number of Channels) 4 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels) All channels (16 targets/s)
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s each channel)
Face Detection Performance of AI by Camera (Number of Channels) 16 channels
Face Database Capacity Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
Face Recognition Performance of AI by Recorder (Number of Channels) 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels) 16 channels
SMD Plus by Recorder 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera All channels (32 targets/s)
Metadata Performance of AI by Camera (Number of Channels) 8 channels
Human Attributes Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella
Motor Vehicle Attributes License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location.
Non-motor Vehicle Attributes Vehicle model, vehicle color, number of persons, helmet.
ANPR by Camera (Number of Channels) All channels (8 targets/s)
License Plate Database Capacity 1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist
Access Channel 16 channels
Network Bandwidth AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
Resolution 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF
Decoding Capability AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps
Video Output 2 VGA, 2 HDMI VGA:1920 × 1080, 1280 × 1024, 1280 × 720 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2
Multi-screen Display Main screen: 1/4/8/9/16 Sub screen: 1/4/8/9/16
Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression G.711a; G.711u; PCM; G726
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI
Mobile Phone Access iOS; Android
Interoperability ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
Network Mode Multi-address mode, load balance, fault tolerance and other network port binding modes
Multi-channel Playback Up to 16 channels
Record Mode General, motion detection; intelligent; alarm; POS
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Disk Group YES
General Alarm Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm
Anomaly Alarm Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception
Intelligent Alarm Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
Alarm Linkage Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email
Audio Input 1-channel RCA
Audio Output 2-channel RCA
Alarm Input 16 channels
Alarm Output 6 channels (1-channel 12 V 1 A output）
Disk Interface 4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
eSATA 1
RS-232 1
RS-485 1 (half-duplex serial communication)
USB 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)
HDMI 2
VGA 2
Network Port 2 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply 100–240 VAC, 50-60 Hz
Power Consumption Total output of NVR is ≤ 13 W (without HDD)
Net Weight 4.74 kg (10.45 lb)
Gross Weight 6.11 kg (13.47 lb)
Product Dimensions 440.0 mm × 415.1 mm x 70.0 mm (17.32" × 16.34" × 2.76") (W ×D × H)
Packaging Dimensions 530.0 mm × 500.0 mm × 210.0 mm (20.87" × 19.69" × 8.27")(W × D × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH), non-condensing
Installation Rack or desktop
Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
