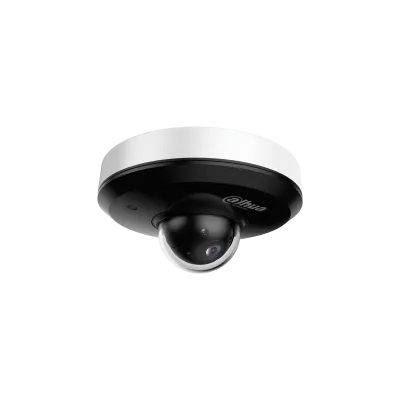

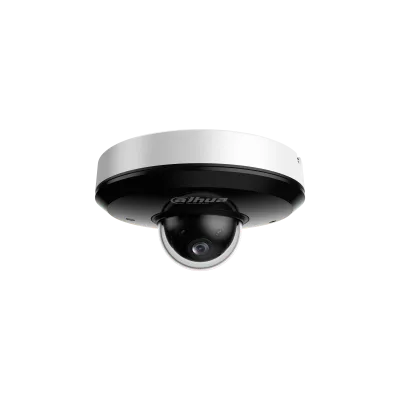

Dahua SD1A404DB-GNY - PTZ IP kamera

Markaya göre filtrele

Dahua SD1A404DB-GNY - PTZ IP kamera
Dahua

Dahua SD1A404DB-GNY - PTZ IP kamera

Model kodu
SD1A404DB-GNY
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

4MP 4x Starlight IR WizSense Network PTZ Camera > 1/2.8" 4Megapixel CMOS. > 4x optical zoom. > Starlight technology. > Max. 25/30 fps@4MP. > IR distance up to 20 m. > Perimeter protection. > Face detection. > SMD 3.0. > Built-in Mic. > IP66; IK08.

Teknik özellikler

Image Sensor 1/2.8" CMOS
Pixel 4 MP
Max. Resolution 2560 (H) × 1440 (V)
ROM 256 MB
RAM 512 MB
Electronic Shutter Speed 1 s–1/30,000 s
Scanning System Progressive
Min. Illumination 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (illuminator on)
Illumination Distance 20 m (65.62 ft) (IR)
Illuminator On/Off Control Manual; SmartIR; Off
Illuminator Number 3 (IR light)
Focal Length 2.8 mm–12 mm
Max. Aperture F1.8–F2.7
Field of View H: 96.9°–31.6°; V: 51.4°–17.8°; D: 116.2°–36.4°
Optical Zoom 4x
Focus Control Auto; semi-auto; manual
Close Focus Distance 0.2 m–0.5 m (0.66 ft– 1.64 ft)
Iris Control Fixed iris
Pan/Tilt Range Pan: 0° to 355°; Tilt: 5° to 90°
Manual Control Speed Pan: 0.1°/s–70°/s Tilt: 0.1°/s–30°/s
Preset Speed Pan: 0.1°/s–80°/s Tilt: 0.1°/s–40°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Power-off Memory Yes
Idle Motion Preset; Tour
PTZ Protocol DH-SD
PTZ Locked Yes
IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification
Face Detection Supports face detection, snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first.
People Counting Supports counting the number of people that cross the detection line, counting the number of people in an area and queue management. Also, only people counting that cross the detection line supports the report function.
SMD Yes
Video Compression H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+
Streaming Capability 3 streams
Resolution 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate Main stream: 4M/3M/1080P/1.3M/720P@(1-25/30 fps) Sub stream 1: D1/VGA/CIF@(1-25/30 fps) Sub stream 2: 720P@(1-25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H264: 96 Kbps–14,848 Kbps H265: 38 Kbps–8,960 Kbps
Day/Night ICR: Color; B/W; Auto; Electronic: Color; B/W; Auto
BLC Yes
WDR 120 dB
HLC Yes
White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual; gain prio
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Electronic Image Stabilization (EIS)
Defog Electronic
Digital Zoom 16×
Image Rotation 180°
S/N Ratio ≥55 dB
Privacy Mask Up to 24 areas can be set, with up to 8 areas in the same view; 8 colors available
Audio Compression PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G.722.1
Network Port RJ-45 (10/100 Base-T)
Network Protocol FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI; SDK
User/Host 20 (total bandwidth: 64 M)
Storage Micro SD card (512 GB); FTP/SFTP; NAS
Browser IE 9 and later versions; Chrome 41 and later versions; Firefox 52 and later versions; Safari 10 and later versions
Management Software DMSS; DSS Pro
Mobile Client iOS; Android
Certifications CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4
Audio Input 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive))
Audio Output 1 channel (LINE OUT,bare wire)
Alarm Linkage Capture; recording; send email; preset; tour
Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Audio I/O 1/1
Power Supply 12 VDC, 2 A ± 10%; PoE (802.3af)
Power Consumption Basic: 4 W; Max: 13 W (illuminator on)
Operating Temperature –30 °C to +60 °C (–22 °F to +140°F)
Operating Humidity ≤95%
Protection TVS 6000 V lightning proof; IP66; IK08; surge protection; voltage transient protection
Product Dimensions 65.7 mm × Φ128.0 mm (2.59" × 5.04")
Net Weight 0.5 kg (1.10 lb)
Gross Weight 0.7 kg (1.54 lb)

Dokümanlar

Data Sheet
