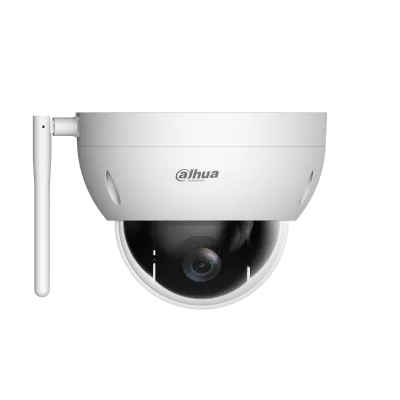

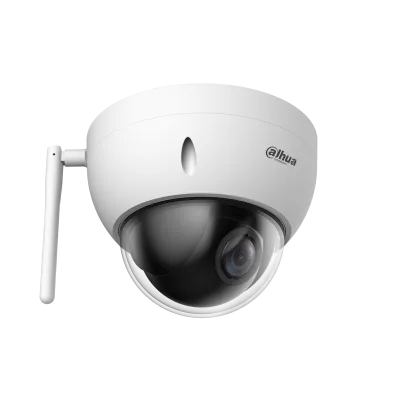

Dahua SD22204DB-GNY-W - PTZ IP kamera

Markaya göre filtrele

Dahua SD22204DB-GNY-W - PTZ IP kamera
Dahua

Dahua SD22204DB-GNY-W - PTZ IP kamera

Model kodu
SD22204DB-GNY-W
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Dahua 3U VIDEO MATRIX PLATFORM > Standard 19" 3U rack-mounted server with ATCA telecommunication-grade architecture. There are 9 slots for audio and video cards. > Developed with a modular design, it is easy to insert cards and configure it to meet your needs. > Offers redundant dual power supply, making it highly suitable for locations such as machine rooms. > The embedded LINUX operating system is secure, reliable, stable, efficient, and user-friendly for developers and maintenance personnel. > Supports input of up to 2 channels at 4K@60 Hz for UHD encoding, or 2 channels at 1080p@60 Hz for HD encoding. > Supports up to 18 channels of 4K and 18 channels of 1080p signal output through HDMI ports, allowing for seamless splicing across up to 36 screens. > Support decoding up to 432-channel HD videos at 1080p@25 fps. > Decodes videos in 32 MP, 16 MP, 12 MP, 8 MP, 5 MP, 3 MP, 1080p, 720p, and D1. > Supports the following standards: H.265, H.264, SVAC, MPEG4 and MJPEG. > The device can be freely controlled through the webpage, desktop client, mobile client and network keyboard. > Features splicing, scaling, video integration, roaming, window opening, and layering. > Supports 1, 4, 6, 8, 9, 16, 25, and 36 splits. You can also customize the split windows. > Up to 128 presets can be set for scenes. You can also customize the layout of each scene on the video wall. > Supports setting the default background color for the video wall and offers subtitles. You can also easily turn the screen on and off as needed.

Teknik özellikler

Image Sensor 1/2.8" CMOS
Pixel 2 MP
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 256 MB
Electronic Shutter Speed 1/1 s–1/30,000 s
Scanning System Progressive
Min. Illumination Color: 0.005 [email protected] B/W: 0.0005 [email protected]
Focal Length 2.8 mm–12 mm
Max. Aperture F1.6–F3.0
Field of View H: 99.1°–31.9°; V: 53.4°–18.0°; D: 117.7°–36.6°
Optical Zoom 4×
Focus Control Auto; semi-auto; manual
Close Focus Distance 1.5 m (4.92 ft)
Iris Control Fixed
Pan/Tilt Range Pan: 0°–355° Tilt: 0°–90°
Manual Control Speed Pan: 0.1°/s–100°/s Tilt: 0.1°/s–60°/s
Preset Speed Pan: 100°/s; Tilt: 60°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Idle Motion Pattern; Preset; Tour
PTZ Protocol SD Pelco-P/D(Auto recognition)
PTZ Locked Yes
IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
Face Detection Supports face detection, face track, snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first.
SMD Yes
Video Compression H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+
Streaming Capability 3 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); VGA (640 × 480)
Video Frame Rate Main stream: 1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 2048 kbps–8192 kbps H.265: 768 kbps–6400 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
WDR DWDR
HLC Yes
White Balance Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Yes
Defog Electronic defog
Digital Zoom 16×
Image Rotation 180°
S/N Ratio ≥ 55 dB
Privacy Mask Up to 24 areas can be set, with up to 8 areas in the same view; 8 colors available
Network Port RJ-45 (10/100 Base-T)
Wi-Fi Yes
Wi-Fi–Wireless Standard 802.11n; IEEE802.11b; 802.11g
Wi-Fi–Wireless Frequency Range 2.4GHz
Wi-Fi–Wireless Transmission Rate 150 Mbps
Max Transmission Power ≤20 dBm@2400–2483.5 MHz
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS
Interoperability ONVIF(Profile S&G&T); P2P; CGI; SDK
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage FTP; Micro SD card (512 GB); NAS
Browser IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions iOS 10 and later versions.
Management Software DMSS; DSS Pro
Mobile Client iOS; Android
Certifications CE: CE-LVD: IEC 62368-1/ CE-EMC/EN55032/ EN61000-3-3/EN IEC61000-3-2/EN50130-4/EN55035 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014
Alarm Linkage Capture; preset; tour; pattern; recordings; alarm digital input; send email
Alarm Event Motion/Tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection
Power Supply 12 VDC, 1 A ± 10%
Power Consumption Basic: 2.7 W Max.: 4.8 W
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤ 95%
Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Storage Humidity ≤ 95%
Protection IP66, IK10
Product Dimensions 89 mm × Φ122 mm (3.50" × Φ4.80")
Net Weight 0.5 kg (1.10 lb)
Gross Weight 0.7 kg (1.54 lb)

Dokümanlar

Data Sheet
