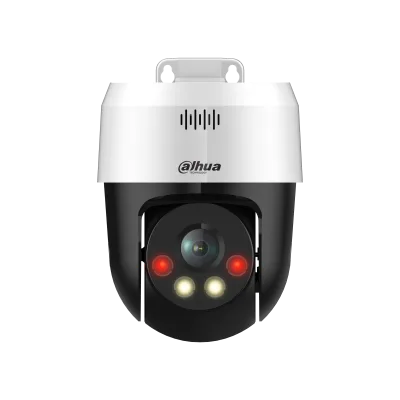

Dahua SD2A500NB-GNY-A-PV - PTZ IP kamera

Markaya göre filtrele

Dahua SD2A500NB-GNY-A-PV - PTZ IP kamera
Dahua

Dahua SD2A500NB-GNY-A-PV - PTZ IP kamera

Model kodu
SD2A500NB-GNY-A-PV
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

5MP Smart Dual Light Network PT Camera

Teknik özellikler

Image Sensor 1/2.8" CMOS
Pixel 5 MP
Max. Resolution 2560 (H) × 1920(V)
ROM 128 MB
RAM 128 MB
Electronic Shutter Speed 1 s–1/100,000 s
Scanning System Progressive
Min. Illumination 0.05 [email protected] (Color, 30 IRE); 0.005 [email protected] (B/W, 30 IRE);
Illumination Distance 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR);
Illuminator On/Off Control Manual; auto; off
Illuminator Number 2 (IR light); 2 (warm light)
Focal Length 4.0 mm
Max. Aperture F1.6
Field of View H: 80.4°; V: 58.1°; D: 104.8°
Close Focus Distance 0.3 m (0.98 ft)
Iris Control Fixed
Pan/Tilt Range Pan: 0° to 345°; Tilt: 0° to +80°
Manual Control Speed Pan: 0.1°–74°/s; Tilt: 0.1°–36.4°/s
Preset Speed Pan: 0.1°–62°/s; Tilt: 0.1°–36.3°/s
Preset 300
Power-off Memory Yes
Idle Motion Preset
IVS Tripwire; intrusion
Human Detection Yes
SMD SMD 3.0
Light Warning Warm light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low
Sound Warning Offers 1 sound alarm and 10 custom sound alarms can be imported; Sound can be set from 0%–100%; Play times can be set from 1-10.
Video Compression Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
Streaming Capability 2 streams
Resolution 5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H264: 104 kbps-8,192 kbps H265: 41 kbps-8,192 kbps
Day/Night Auto (ICR); Color/B/W
BLC Yes
WDR DWDR
HLC Yes
White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Defog Electronic
Image Rotation 180°
Privacy Masking 4 area
S/N Ratio ≥55 dB
Audio Compression PCM；G.711a；G.711Mu；G.726；AAC；
Network Port RJ-45 (10/100 Base-T)
Network Protocol HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL;FTP;ARP;RTCP;RTP;IP Filter;RTMP
Interoperability CGI;SDK;ONVIF (Profile S & Profile T);RTMP;P2P
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage Micro SD card (256 GB); FTP
Browser IE: IE 7 and later versions; Chrome; Firefox; Safari
Management Software Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player
Mobile Client iOS;Android
Certifications CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000- 3-2/EN55024/EN55035/EN62368-1 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014
Audio Input 1 channel (built-in mic)
Audio Output 1 channel (built-in speaker)
Alarm Linkage Capture; preset; recording; audio; sending email
Alarm Event Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Power Supply 12 VDC/1.5 A ± 10% PoE (802.3af)
Power Consumption Basic: 3.5 W; Max: 10 W (illuminator)
Power Adapter Optional
Operating Temperature –30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity ≤95%
Protection TVS 2000 V lightning proof; surge protection; voltage transient protection;Waterproof and Dustproof
Product Dimensions 140.5 mm × Φ111.0 mm (5.53" × Φ4.37")
Net Weight 0.5 kg (1.10 lb)
Gross Weight 1 kg (2.20 lb)
Remarks * The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model

Dokümanlar

Data Sheet
