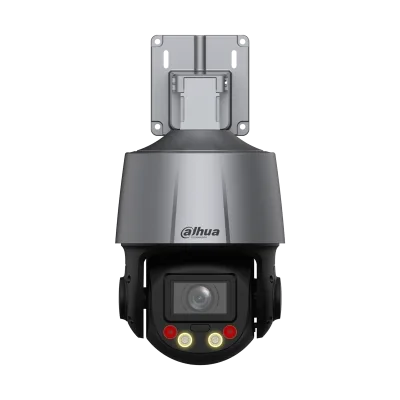

Dahua SD3C205DB-GNY-A-PV - PTZ IP kamera

Markaya göre filtrele

Dahua SD3C205DB-GNY-A-PV - PTZ IP kamera
Dahua

Dahua SD3C205DB-GNY-A-PV - PTZ IP kamera

Model kodu
SD3C205DB-GNY-A-PV
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2MP 5x Smart Dual Light WizSense Network PTZ Camera > 1/2.8" 2Megapixel CMOS. > 5x optical zoom. > Max. 25/30fps@1080P. > IR distance up to 50 m. > Warm light illumination distance up to 30 m. > Built-in Mic and Speaker for Two-way Talk. > Perimeter protection. > SMD 3.0. > 12 VDC/PoE power supply. > IP66.

Teknik özellikler

Image Sensor 1/2.8" CMOS
Pixel 2 MP
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 512 MB
Electronic Shutter Speed 1 s–1/30,000 s
Scanning System Progressive
Min. Illumination Color: 0.05 [email protected] B/W: 0.005 [email protected] 0 lux (IR light on)
Illumination Distance 50 m (164.04 ft) (IR);30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Zoom Prio; Manual; Auto; Off
Illuminator Number 2 (IR); 2 (Warm light)
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.6–F3.0
Field of View H: 99.6°–31.5°; V: 53°–17.8°; D: 118.8°–36.2°
Optical Zoom 5 ×
Focus Control Auto; semi-auto; manual
Close Focus Distance 1.5 m (4.92 ft)
Iris Control Fixed
Pan/Tilt Range Pan: 0° to 355° Tilt: –15° to +90°
Manual Control Speed Pan: 0.1°/s–36°/s Tilt: 0.1°/s–25.8°/s
Preset Speed Pan: 35.7°/s; Tilt: 27.1°/s
Preset 300
Power-off Memory Yes
Idle Motion Preset
IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
SMD Yes
Light Warning White light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low
Sound Warning Offers 11 types of sound alarms, and supports importing up to 10 custom sound alarms. The sound alarm can be set to play 1 to 10 times.
Video Compression H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+
Streaming Capability 3 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288)
Video Frame Rate Main stream: 1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/CIF/VGA@ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 64 kbps–8192 kbps H.265: 25 kbps–6400 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
WDR 120 dB
HLC Yes
White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Electronic (EIS)
Defog Electronic
Digital Zoom 16×
Image Rotation 180°
S/N Ratio ≥55 dB
Audio Compression G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM
Network Port RJ-45 (10/100 Base-T)
Network Protocol FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI;SDK;P2P
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage FTP/SFTP; Micro SD card (512 GB); NAS
Browser IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions
Management Software DMSS; DSS Pro
Mobile Client iOS; Android
Certifications CE: EN55032/EN55024/EN50130-4
Audio Input 1 channel (built-in mic)
Audio Output 1 channel (built-in speaker)
Alarm Linkage Capture; recording; send email; preset; audio; warning light
Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Power Supply 12 VDC, 1.5 A ± 25% PoE (802.3af)
Power Consumption Basic: 3 W Max: 12 W (illuminator + PTZ + speaker)
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95%
Protection IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection
Product Dimensions 142.6 mm × 140.0 mm × 236.2 mm (5.61" × 5.51" × 9.30") (L × W × H)
Net Weight 1.1 kg (2.43 lb)
Gross Weight 1.7 kg (3.75 lb)

Dokümanlar

Data Sheet
