Image Sensor

1/2.8" CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

128 MB

RAM

512 MB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 [email protected] B/W: 0.0005 [email protected] 0 lux (IR light on)

Illumination Distance

70 m (229.66 ft) (IR) 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Zoom Prio; Manual; Auto; Off

Illuminator Number

2 (IR) 2 (Dual-core light) 1 (Red light) 1 (Blue light)

Focal Length

4 mm–40 mm

Max. Aperture

F1.6–F3.0

Field of View

H: 50.7°–11.0°; V: 27.6°–6.3°; D: 57.6°–12.5°

Optical Zoom

10×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

1m–1.5 m (3.28 ft-4.92 ft)

Iris Control

Fixed

Pan/Tilt Range

Pan: 0° to 355° Tilt: –15° to +90°

Manual Control Speed

Pan: 0.1°/s–36°/s; Tilt: 0.1°/s–25.8°/s

Preset Speed

Pan: 35.7°/s; Tilt: 27.1°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Auto Patrol

It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets.

Power-off Memory

Yes

Idle Motion

Preset; Tour

PTZ Locked

Yes

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking (people)

Face Detection

Supports face detection, snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first

Auto Tracking

Auto tracking Lite

SMD

SMD 3.0

Light Warning

Red and blue light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low

Sound Warning

Offers 11 types of sound alarms, and supports importing up to 10 custom sound alarms. The sound alarm can be set to play 1 to 10 times

Video Compression

H.265; H.264B; H.264M; H.264H; MJPEG(Sub Stream 1); smart H.265+; smart H.264+

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 ×480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 96 kbps–14848 kbps H.265: 38 kbps–8960 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic (EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

S/N Ratio

≥55 dB

Privacy Mask

Up to 24 areas can be set, with up to 8 areas in the same view; 8 colors available

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2_Layer2; G.722.1

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SMB; NFS

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP/SFTP; Micro SD card (512 GB); NAS

Browser

IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions

Management Software

DMSS; DSS Pro; NVR

Mobile Client

iOS; Android

Certifications

CE: EN55032/EN55024/EN50130-4

Audio Input

1 channel (LINE IN, bare wire, built-in mic (mutually exclusive))

Audio Output

1 channel (LINE OUT, bare wire; built-in speaker (mutually exclusive))

Alarm Linkage

Capture; recording; send email; preset; alarm digital input; audio; warning light

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Alarm I/O

1/1

Audio I/O

1/1

Power Supply

12 VDC, 2 A ± 10% PoE+ (802.3at)

Power Consumption

Basic: 3 W Max.: 12 W (Warning light + illuminator + PTZ + speaker + heating glass) (12 VDC) Basic: 4 W Max.: 14 W (Warning light + illuminator + PTZ + speaker + heating glass) (PoE)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Protection

IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection

Product Dimensions

142.6 mm × 151.8 mm × 236.2 mm (5.61" × 5.98" × 9.30 ") (L × W × H)

Net Weight

1.58 kg (3.48 lb)

Gross Weight

2 kg (4.41 lb)

OKİSAN GÜVENLİK TEKNOLOJİLERİ SAN. VE TİC. A.Ş.

Şişli, İstanbul

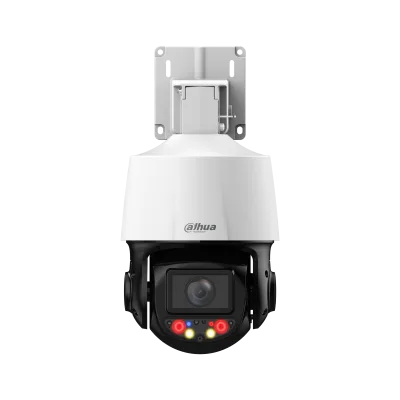

Dahua SD3E410DB-GNY-A-PV1 - PTZ IP kamera
