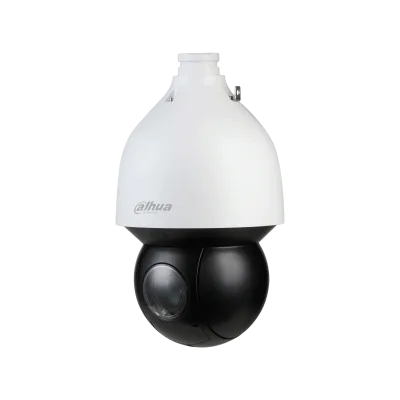

Dahua SD5A232XB-HNR - PTZ IP kamera

Markaya göre filtrele

Dahua SD5A232XB-HNR - PTZ IP kamera
Dahua

Dahua SD5A232XB-HNR - PTZ IP kamera

Model kodu
SD5A232XB-HNR
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2MP 32x Starlight IR WizSense Network PTZ Camera > Face detection

Teknik özellikler

Image Sensor 1/2.8" CMOS
Pixel 2 MP
Max. Resolution 1920 (H) × 1080 (V)
ROM 4 GB
RAM 1 GB
Electronic Shutter Speed 1/1 s–1/30,000 s
Scanning System Progressive
Min. Illumination Color: 0.005 [email protected] B/W: 0.0005 [email protected] 0 lux (IR light on)
Illumination Distance 150 m (492.13 ft) (IR)
Illuminator On/Off Control Zoom Prio; Manual; SmartIR
Illuminator Number 4 (IR)
Focal Length 4.8 mm–154 mm
Max. Aperture F1.6–F4.0
Field of View H: 58.44°–3.04°; V: 33.45°–1.71°; D: 66.45°–3.49°
Optical Zoom 32×
Focus Control Auto; Semi-auto; Manual
Close Focus Distance 0.8 m–5.0 m (2.62 ft–16.40 ft)
Iris Control Auto; Manual
Pan/Tilt Range Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180°
Manual Control Speed Pan: 0.1°–300°/s Tilt: 0.1°–200°/s
Preset Speed Pan: 400°/s; Tilt: 300°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Yes
Idle Motion Preset; Pattern; Tour; Scan
PTZ Protocol DH-SD Pelco-P/D (auto recognition)
Smart Capture Support human, motor vehicle and non-motor vehicle image capture.
IVS (Perimeter Protection) Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face Detection Yes
Auto Tracking Yes
SMD PLUS Yes
Video Compression Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream)
Streaming Capability 3 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288)
Video Frame Rate Main stream: 2M/1.3M/720p (1–50/60 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 2M/1.3M/720p (1–25/30 fps)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps
Day/Night Auto (ICR); Color; B/W
BLC Yes
WDR 120 dB
HLC Yes
White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; Manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization EIS
Defog Electronic
Digital Zoom 16×
Image Rotation 180°
Privacy Masking Up to 24 areas can be set, with up to 8 areas in the same view
S/N Ratio ≥ 55 dB
Audio Compression G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Network Port RJ-45 (10/100 Base-T)
Network Protocol HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP
Interoperability ONVIF Profile S&G&T; CGI
Streaming Method Unicast; Multicast
User/Host 20 (total bandwidth: 64 M)
Storage FTP; Micro SD card (512 GB); NAS
Browser IE: IE7 and later Chrome: 42 and earlier Firefox: 52 and earlier Safari
Management Software Smart PSS; DSS; DMSS; Easy4ip; IVSS
Mobile Client iOS; Android
Certifications CE-LVD: EN 62368-1 CE-EMC: EN55032: 2015/EN61000-3-2; 2019/EN61000-3-3: 2013+A1: 2019 /EN50130-4: 2011/A1: 2014/EN55024: 2010/A1: 2015/EN55035: 2017 FCC: CFR 47 FCC Part15, Subpart B UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Two-way Audio Yes
Alarm Linkage Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email
Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection
Alarm I/O 2/1
Audio I/O 1/1
Power Supply 24 VDC, 2.5 A (± 25%) PoE+ (802.3at)
Power Consumption Basic: 13 W Max.: 22 W (illuminator + PTZ working)
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤ 95%
Protection IP67; IK10; TVS 6000 V lightning proof; surge protection; voltage transient protection
Product Dimensions 331.9 mm × Φ190.4 mm (13.07" × Φ7.50")
Net Weight 4.7 kg (10.36 lb)
Gross Weight 8 kg (17.64 lb)

Dokümanlar

Data Sheet
