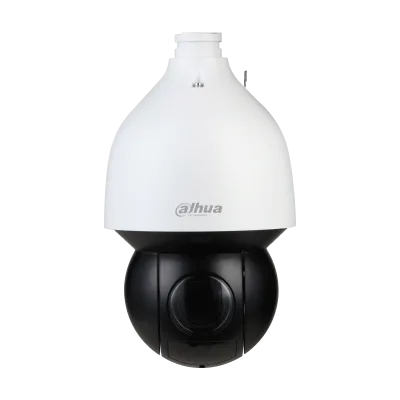

Dahua SD5A445XA-HNR-1T - PTZ IP kamera

Markaya göre filtrele

Dahua SD5A445XA-HNR-1T - PTZ IP kamera
Dahua

Dahua SD5A445XA-HNR-1T - PTZ IP kamera

Model kodu
SD5A445XA-HNR-1T
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

4MP 45x Starlight IR DHOP Network PTZ Camera > IP67 , IK10

Teknik özellikler

Computing Power 1T computing power for enhanced performance
Flash 350 M
System Memory 300 M
Multimedia Memory 64 M
DHOP Partners A.I.Tech, ACIC, Grekkom, Kobi, Retailflux, Siteeye, TechnoAware, etc. (https://depp.dahuasecurity.com/OpenPlatform)
Image Sensor 1/2.8" STARVIS™ CMOS
Pixel 4MP
Max. Resolution 2560 (H) × 1440 (V)
ROM 4GB
RAM 1GB
Electronic Shutter Speed 1/3–1/30,000s
Scanning System Progressive
Min. Illumination Color: 0.005 [email protected] B/W: 0.0005 [email protected] 0 Lux (IR light on)
Illumination Distance 150 m (492.13 ft)
Illuminator On/Off Control Zoom Prio/Manual/SmartIR
Illuminator Number 4
Focal Length 3.95 mm–177.7 mm
Max. Aperture F1.6–F4.95
Field of View H: 70.3°–1.8°; V: 37°–1°; D: 69.3°–2°
Optical Zoom 45x
Focus Control Auto/Semi-Auto/Manual
Close Focus Distance 0.01 m–3 m
Iris Control Auto/Manual
Pan/Tilt Range Pan: 0°–360°; Tilt: –15°–+90°
Manual Control Speed Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s
Preset Speed Pan: 400°/s; Tilt: 300°/s
Presets 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Speed Adjustment Support
Power-off Memory Support
Idle Motion Preset/Tour/Pattern/Scanning
Protocol DH-SD Pelco-P/D(Auto recognition)
Event Trigger Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly.
Compression H.265/H.265+/H.264+/H.264/MJPEG(Sub Stream)
Streaming Capability 3 Streams
Resolution 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Frame Rate Main stream: 4M/3M(1–25/30 fps), 1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p (1-20/11 fps), 1.3M/720p (1–25/30 fps), D1/ CIF (1–25/30 fps)
Bit Rate Control Variable/Constant
Bit Rate H.264: 32 Kbps–8192 Kbps H.265: 32 Kbps–8192 Kbps
Day/Night Support
BLC Support
WDR 120 dB
HLC Support
White Balance Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp
Gain Control Auto/Manual
Noise Reduction 2D/3D
Motion Detection Support
Region of Interest (RoI) Support
Image Stabilization Electronic
Defog Electronic
Digital Zoom 16x
Flip 0°/180°
Privacy Masking Up to 24 areas
Certifications CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA 22.2, No.60950-1
Compression G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2
Audio I/O 1 (Line in; bare wire)/1 (Line out; bare wire)
Alarm I/O 2/1
Ethernet 1 RJ-45 Port 10/100Base-T
Protocol IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP
Interoperability ONVIF Profile S&G&T; CGI; DHOP SDK
Streaming Method Unicast/Multicast
User/Host 20 (Total bandwidth 48M)
Storage FTP; Micro SD card (256G) ; P2P
Browser IE7 and newer versions Chrome 42 and older versions Firefox 52 and older versions Safari
Management Software Smart Player Smart PSS DSS Easy4ip
Mobile Phone IOS/Android/Windows Phone
Power Supply DC 24 V/2.5 A ± 25% PoE+ (802.3at)
Power Consumption 11 W 20 W (IR light on)
Operating Conditions –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤95%RH
Protection IP67; IK10; TVS 6000V lightning protection; surge protection
Dimensions Φ190 mm × 332 mm (7.48" × 13.07")
Weight Net Weight: 4.7 kg (10.36 lb) Gross Weight: 8 kg (17.64 lb)
Casing Metal

Dokümanlar

Data Sheet
