Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

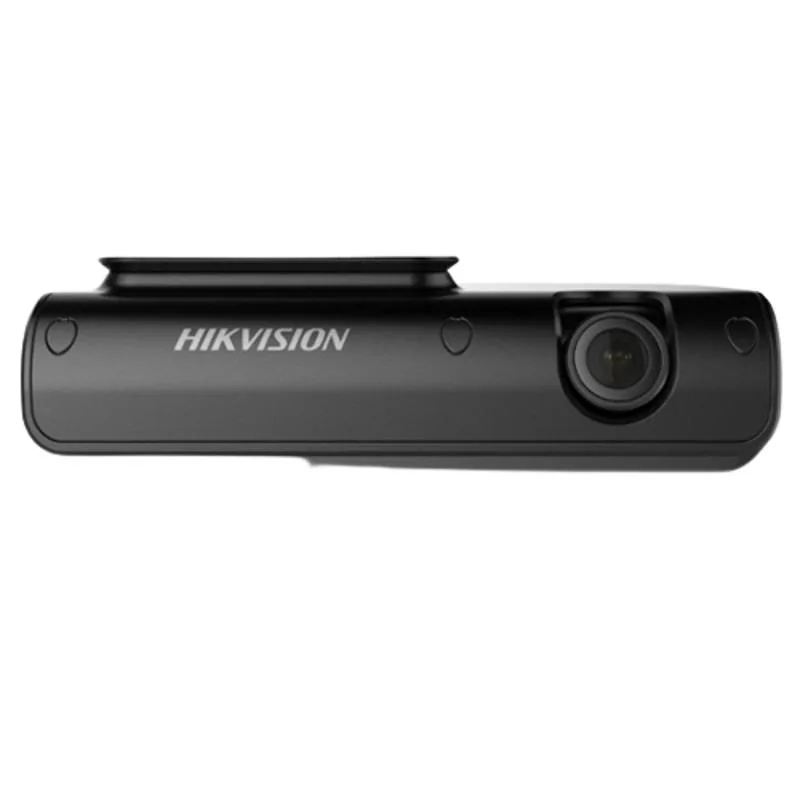

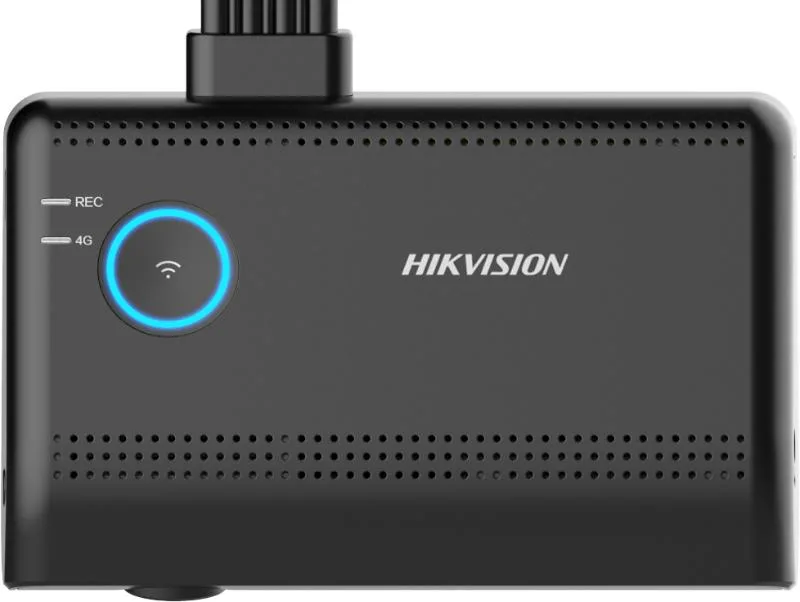

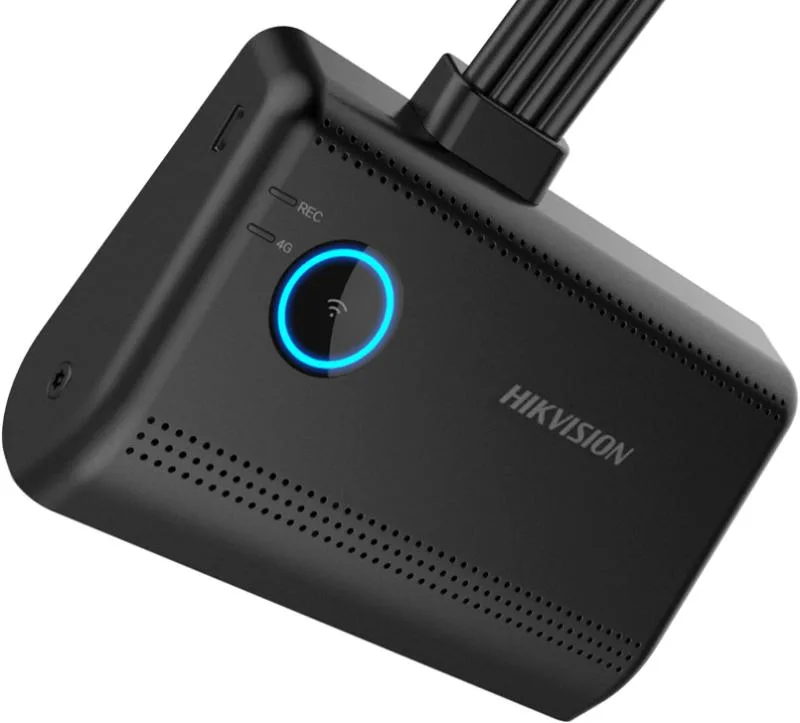

Up to 1080P resolution, with 108° FOV. Supports GPS and speed overlay on picture. Built-in Wi-Fi module, supports Wi-Fi AP. Supports 4G network. Supports dual-TF card storage and recording overwrite. Supports preview, playback and editing parameters via APP. Supports connecting to HCP&HCC for uploading and playback. Adopts build-in Gyroscope. Compatible with 4-ch TVI Camera. Supports object detection, driving safety monitoring etc.. Easy installation and operation. Low power consumption and high performance
Teknik özellikler
| Image Sensor | 1/2.5'' Progressive Scan CMOS |
|---|---|
| Min. Illumination | 0.01 Lux @ (AGC ON) |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Focal Length | Fixed focal lens, 3.35mm |
| FOV | Horizontal FOV: 108° Vertical FOV: 56° Diagonal FOV: 135° |
| Lens Mount | M12 |
| Max. Aperture | F2.0 |
| Video Input | 5-channel video (default: 1 channel; extension: 4 channels) |
| Main Stream | CH1: 25fps 1080P 1920 × 1080 (default) 25fps 720P 1280 × 720 CH2~CH5: 25fps 720P 1280 × 720 (default) |
| Sub-Stream | CH1: 25fps 720P 1280×720 25fps 480P 640×480 (default) CH2~CH5: 25fps 480P 640×480 (default) |
| Video Compression | H.264 (default) H.265 |
| Audio Input | 1-channel audio |
| Audio Compression | G711U (Default) G711A AAC |
| Built-in Mic | Omnidirectional pickup, frequency response 100-20000 Hz |
| Built-in Speaker | Max 0.8 W, with adjustable volume, not less than 50 dB at 1 m distance |
| Wi-Fi Protocol | IEEE 802.11b/g/n |
| Frequency Range | 2.4 GHz |
| SIM Card Slot | 1, Industry Micro SIM, Plug-in type |
| Dial-up | Baseline： FDD-LTE: B1, B3, B5, B8 TDD-LTE: B38, B39, B40, B41 TD-SCDMA: B34, B39 UMTS: B1, B8 EV-DO: BC0 CDMA 1x: BC0 GSM/GPRS/EDGE: 900/1800 MHz Australia： FDD-LTE: B1, B3, B5, B7, B28 TDD-LTE: B40 UMTS: B1, B5 Europe： FDD-LTE: B1, B3, B5, B7, B8, B20 TDD-LTE: B40 UMTS: B1, B8 GSM/GPRS/EDGE: 900/1800 MHz Latin America： FDD-LTE: B1, B2, B3, B4, B5, B7, B8, B10, B28, B66 TDD-LTE: B38, B40, B41 UMTS: B1, B2, B4, B5, B8 GSM/GPRS/EDGE: 850/900/1800/1900 MHz Warning: The industrial SIM card (MP2) is required, and the ordinary SIM card (MP1) is prohibited. We are not responsible for any problem caused by the use of any ordinary SIM card. |
| SNR | 40 dB |
| Wide Dynamic Range (WDR) | Supports Digital WDR |
| Image Settings | Adjustable brightness, chroma, contrast, color saturation, and sharpness |
| OSD | Date, Time, GPS, Speed, etc. |
| USB Interface | 1, Mini USB 2.0, used for connecting to peripheral device |
| Reset Key | 1, Pinhole button |
| Alarm Input | 2 |
| RS-232 | 1 |
| GPS Information Detection | BDS (BeiDou Navigation Satellite System) GPS (Global Positioning System) |
| Indicator | Wi-Fi Status Indicator Off: Wi-Fi AP closed Low Frequency Flashing blue: Wi-Fi AP open but no APP connection High Frequency Flashing blue: Wi-Fi AP open and APP connection normal Network Status Indicator (4G) Off: No 4G signal Steady white: 4G signal and the platform connection normal Flashing white: 4G signal normal but no platform connection Recording Status Indicator(REC) Off: The built-in or extended camera stops / fails Steady white: The built-in or extended camera is recording normally |
| System | Embedded Linux |
| Language | Currently only supports English *The language includes APP interface language and voice reminder. |
| Product Dimension | 124.0 mm × 82.0 mm × 33.0 mm (4.9" × 3.2" × 1.3") |
| Product Weight | Approx. 300 g (0.7 lb.) |
| Image format | JPEG |
| Power Supply | 9 to16V , support 12/24V with the buck line |
| Package Dimension | 223 mm×153 mm×63 mm (8.8"×6.0"×2.5") |
| Operating Temperature | -20°C to 45°C (-4°F to 113°F) |
| Protection | IP4X *The dash camera is non-waterproof |
| With Package Weight | Approx. 600 g (1.3 lb.) |
| Power Interface | 1, 8-pin BM Male Terminal |
| Sensor | Six-axis G-Sensor *Harsh acceleration, Harsh deceleration and Harsh cornering |
| Operating Humidity | 10% to 95% (non-condensing) |
