Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

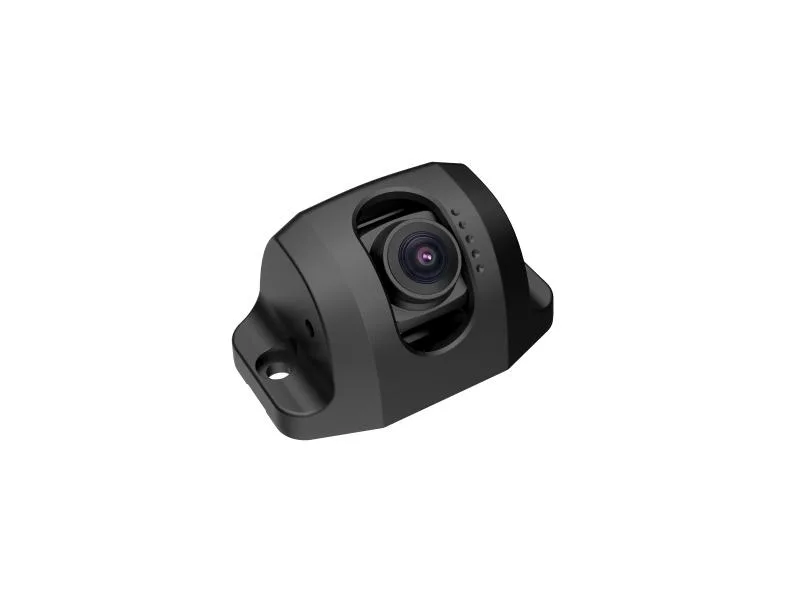

Adopts progressive scan CMOS to prevent motion image aliasing. Supports HD coaxial output with the resolution 1080P. Min. illumination: 0.01 Lux @(F1.2, AGC ON). Adopts auto electronic shutter to adapt to different environment. Shock-proof design and aviation output plug. Water and dust resistant (IP68&IP69K) and vandal proof (IK10)
Teknik özellikler
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON) |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Case Type | Square camera |
| Resolution | 1920×1080 |
| Shutter Speed | 1/25 s to 1/30, 000 s |
| Day & Night | Color |
| Focal Length & FOV | Wide Angle: 1mm, horizontal: 202°(±5°), vertical: 123°(±5°) |
| Lens Type | Fixed focal lens, 1 mm |
| Lens Mount | M12 |
| Frame Rate | Default 1080P@30 fps, 1080P@25 fps customizable |
| Built-in Mic | Not Supported |
| Built-in Speaker | Not Supported |
| Wide Dynamic Range (WDR) | 96 dB |
| SNR | 42 dB |
| Video Output | 1-way coaxial HD, conforming to HDTVI |
| Interface Type | 1 Vpp Composite Output (aviation plug) A pin sequence: 1: power, 2: ground, 3: NA, 4: video B pin sequence: 1: video, 2: NA, 3: power, 4: ground |
| Power Supply | 9 to 16 V DC |
| Power Consumption | Max. 1.2W |
| Camera Material | Metal |
| Product Dimension | 74.8 mm × 48.2 mm × 41.7 mm (2.9" × 1.9" × 1.7") Note: with rubber cushion, the height is 43.7 mm (1.7") |
| Product Weight | Approx. 129 g (0.3 lb.) |
| Startup and Operating Conditions | -40 °C to 75 °C (-40 °F to 167 °F), Humidity 90% or less (non-condensing) |
| Cable Length | 480±50 mm (without connector) |
| Protection | IP68(IEC 60529-2013), IK10(IEC 62262:2002), IP69K(ISO 20653:2013) |
