Hikvision

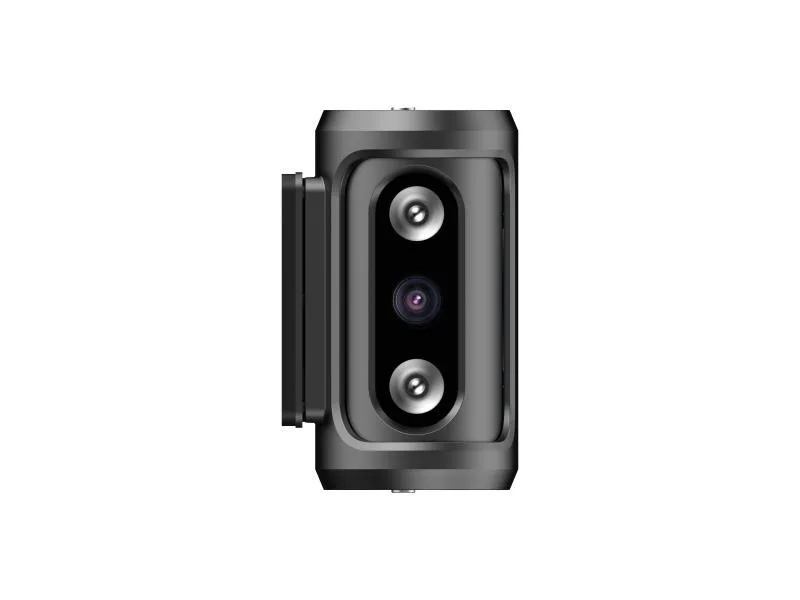

Hikvision AE-VC583I-IS/P(V)/(H) - Plaka tanıma (ANPR) kamera
- Model kodu
- AE-VC583I-IS/P(V)/(H)
- Sistem
- Kamera sistemi
- Kategori
- Plaka tanıma (ANPR) kamera
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
1/2.7" Progressive Scan CMOS. 4mm/6mm/8mm/12mm/16mm fixed lens. High quality imaging with 5 MP resolution. Clear imaging against strong back light due to 120 dB true WDR technology. Efficient H.265+ compression technology. Water and dust resistant (IP68&IP69K) and vandal proof (IK10). Advanced streaming technology that enables smooth live view and data self-correcting in poor network. 3DNR technology delivers clean and sharp images. The network camera can identify license plates in the Asia-Pacific region, the Middle East, Europe, Africa and the Americas
Teknik özellikler
| Image Sensor | 1/2.7" Progressive Scan CMOS |
|---|---|
| Min. Illumination | Color: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Slow Shutter | Not supported |
| P/N | P/N |
| Day & Night | IR cut filter |
| Angle Adjustment | Tilt: -25° to +55° |
| Power-off Memory | Yes |
| Focal Length & FOV | 4mm/6mm/8mm/12mm/16mm fixed lens 4mm:Horizontal FOV 78°, vertical FOV 55°, diagonal FOV 105° 6mm:Horizontal FOV 49°, vertical FOV 35°, diagonal FOV 63° 8mm:Horizontal FOV 37°, vertical FOV 28°, diagonal FOV 46° 12mm:Horizontal FOV 28°, vertical FOV 10°, diagonal FOV 30° 16mm:Horizontal FOV 17°, vertical FOV 13°, diagonal FOV 22° |
| Lens Mount | M12 |
| Max. Aperture | F1.6 |
| IR Wavelength | 850 nm |
| IR Range | Up to 20 m IR range |
| Max. Resolution | 2560 × 1920 |
| Main Stream | 50Hz: 25fps (2560 × 1920, 1920 × 1080, 1280 × 720); 60Hz: 30fps (2560 × 1920, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480) |
| Third Stream | 50Hz: 25fps (1280 × 720) |
| Video Compression | Main stream: H.265/ H.264/Smart265/Smart264 Sub stream: H.265/H.264/Smart265/Smart264 Third stream: H.265/H.264/Smart265/Smart264 |
| Video Bit Rate | First stream: 512 bps-16384 bps Second stream: 256 bps-4096 bps Third stream: 256 bps-4096 bps |
| H.264 Type | BaseLine Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | Constant Bit Rate, Variable Bit Rate |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, IGMP, QoS, UDP, |
| Simultaneous Live View | Up to 10 channels |
| API | ONVIF (PROFILE S), ISAPI, SDK, |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS |
| Web Browser | IE10+, Chrome45+,Edge41+,Firefox45+ (image download only available on IE) |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Settings | Saturation, brightness, contrast, sharpness are adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Image Enhancement | BLC, 2DNR ,3DNR |
| Communication Interface | RJ45: 1 RJ45 10M/100M Ethernet port, 1Φ5.5mm coaxial power plug,1 alarm in,1 alarm out; 4pin: M12-D aviation plug, 1 molex power plug,1 alarm in,1 alarm out; 6pin: 6pin aviation plug for power supply,1 alarm in,1 alarm out; |
| Product Dimension | Camera: 113 mm × 72 mm × 68 mm (4.45" × 2.83" × 2.68") |
| Protection | IP68(IEC 60529-2013), IP69K (ISO 20653: 2013), IK10 (IEC 62262: 2002) |
| Power Supply | DC:9~36V PoE(802.3af,36-57V) |
| Power Consumption | 9W MAX |
| Storage Conditions | -30 °C to +75 °C（-22 ℉ to +167 ℉）, Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to +75 °C（-22 ℉ to +167 ℉）, Humidity 95% or less (non-condensing) |
| Weight | 622g±5g |
| Language | English |
| Installation model | Horizontal installation:AE-VC583I-IS/P(H);Vertical installation:AE-VC583I-IS/P(V) |
| General Function | Anti-flicker, heartbeat, mirror, password protection,IP address filter |
| Environment | CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863) WEEE: 2012/19/EU Reach SVHC: Regulation (EC) No 1907/2006 |
| Electrical Safety Protection | IP68: IEC 60529-2013,IP69K,IK10: IEC 62262:2002 |
| Automotive and Railway | EN50155: EN 50155-2007,EN 50155-2017 EN45545: (EN 45545-2:2013+A1:2015); E-MARK (ECE R10) |
| EMC | FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B） CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013） RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015 IC: ICES-003 Issue 7:2020 KC: KN32:2015,KN35:2015 |
| Safety | CB: IEC 60950-1 CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013) LOA: SANS IEC60950-1 BIS: IS 13252(Part 1)2010+A1:2013+A2:2015 |
