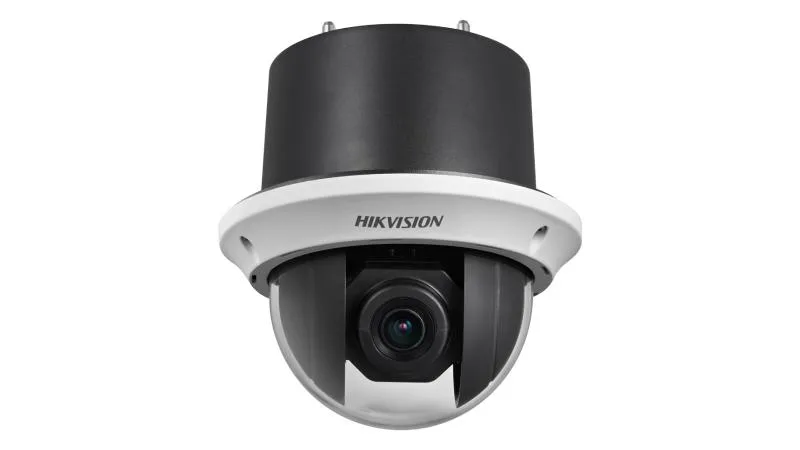

Hikvision DS-2AE4215T-D3 - PTZ IP kamera
Hikvision

Hikvision DS-2AE4215T-D3 - PTZ IP kamera

Model kodu
DS-2AE4215T-D3
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 2 MP resolution. Excellent low-light performance with powered-by-DarkFighter technology. Clear imaging against strong back light by 120 dB WDR technology. Pan and tilt ability enables the camera to capture interested areas. Securing an expansive area with 15x optical zoom. Water and dust resistant (IP66)

Teknik özellikler

Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON)
Shutter Speed PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
Day & Night IR cut filter
Zoom 15 × optical, 16 × digital
Focal Length 5 mm to 75 mm, 15 × optical
FOV Horizontal FOV: 53.8° to 4.0° (wide to tele) Vertical FOV: 31.9° to 2.3° (wide to tele) Diagonal FOV: 60.4° to 4.6° (wide to tele)
Focus Auto, semi-auto, manual
Aperture F1.6 to F3.5
Zoom Speed Approx. 2.4 s (optical, wide to tele)
Movement Range (Pan) 360° endless
Movement Range (Tilt) -5° to 90° (auto flip)
Pan Speed Pan manual speed: 0.1° to 100°/s Pan preset speed: 100°/s
Tilt Speed Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s
Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Preset Freezing Yes
Patrol Scan 10 patrols, up to 32 presets for each patrol
Pattern Scan 5 patterns, record time over 10 minutes for each scan
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status Display Yes
Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off Memory Yes
Frame Rate 50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)
Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
Image Settings AGC, white balance
Wide Dynamic Range (WDR) ≥ 120 dB
Image Stabilization EIS
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 8 programmable privacy masks
Regional Focus Yes
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm 2 alarm inputs, 1 alarm output
RS-485 Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
Power 12 VDC, max. 12 W
Dimension DS-2AE4215T-D3(D) (Indoor): Ø 165 mm × 179.5 mm (Ø 6.5" × 7.1") DS-2AE4215T-D3(D) (In-ceiling): Ø 165 × 168 mm (Ø 6.5" × 6.6")
Weight Approx. 2 kg (4.41 lb.)
Operating Condition -10° C to 50° C (14° F to 122° F). Humidity 90% or less
Language English
Protection TVS 4,000 V lightning protection, surge protection and voltage transient protection

Dokümanlar

Quick Start Guide - 4-inch 2 MP 15X Powered by DarkFighter Analog Speed Dome User Manual - 4-inch 2 MP 15X Powered by DarkFighter Analog Speed Dome
