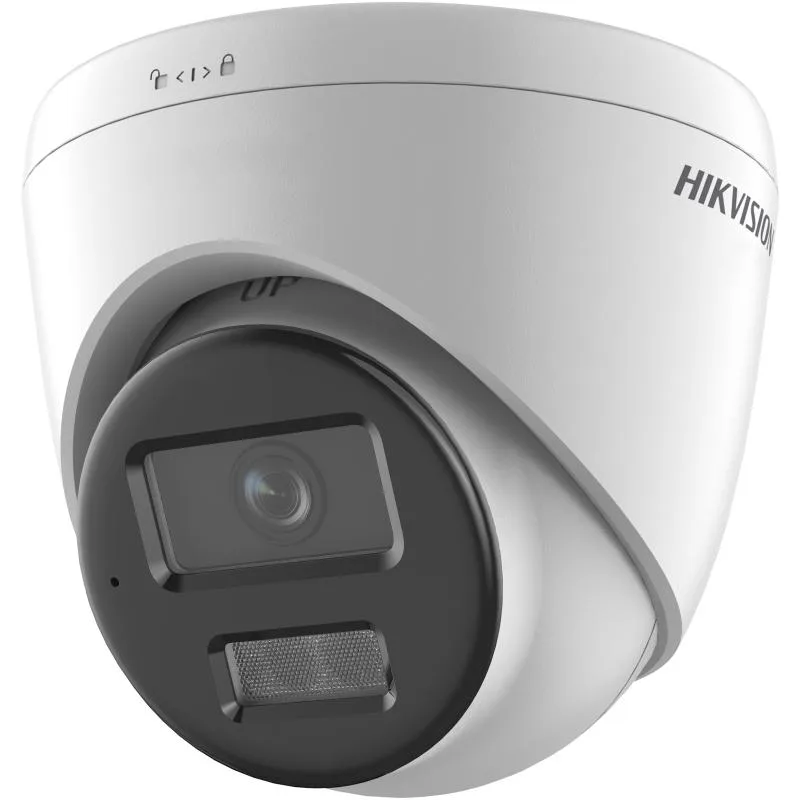

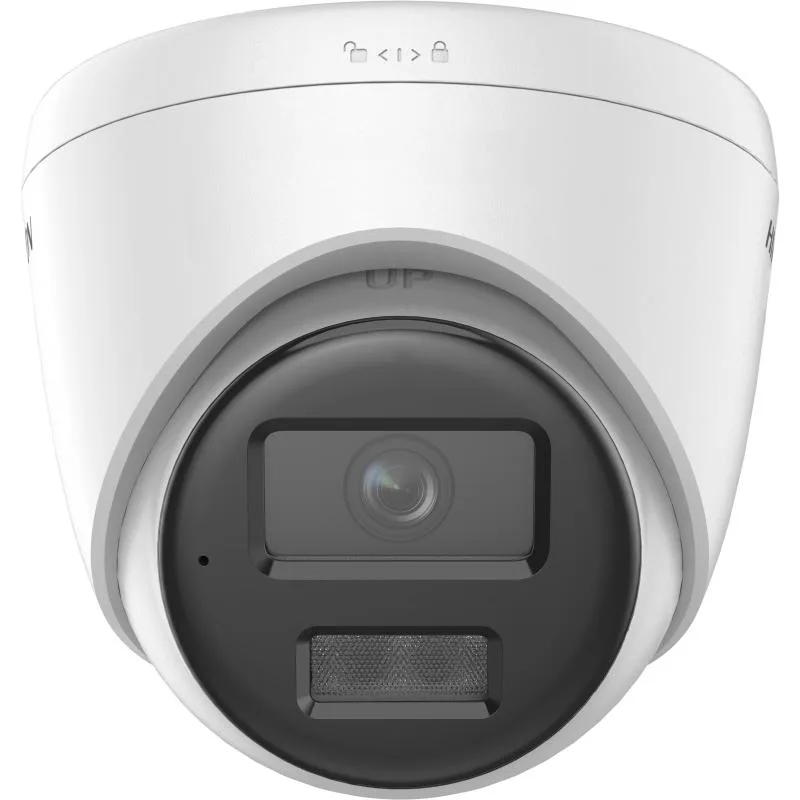

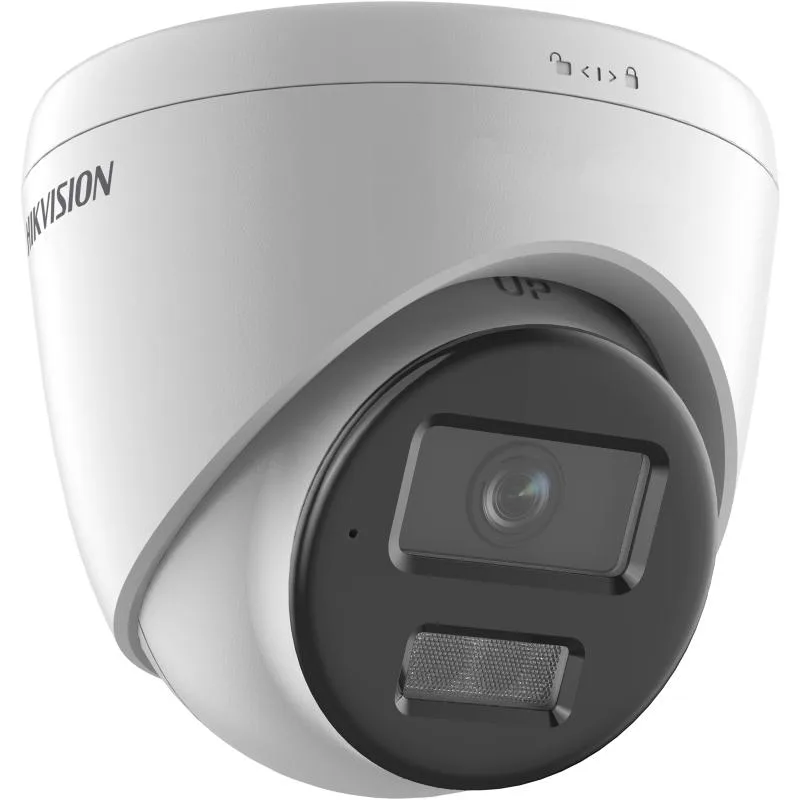

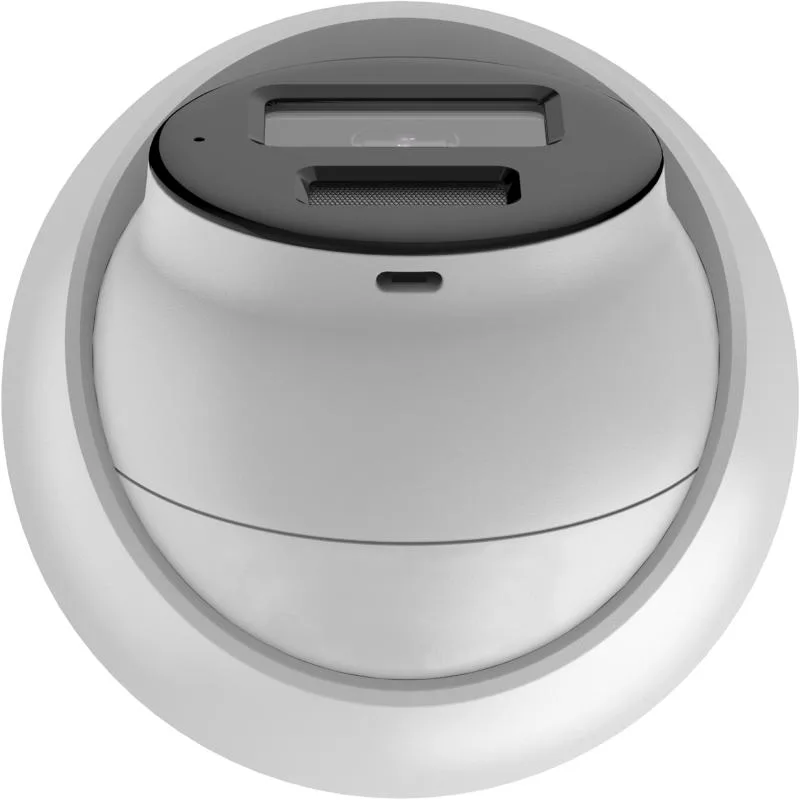

Hikvision DS-2CD1321G2-LIU(F) - Dome IP kamera

Markaya göre filtrele

Hikvision DS-2CD1321G2-LIU(F) - Dome IP kamera
Hikvision

Hikvision DS-2CD1321G2-LIU(F) - Dome IP kamera

Model kodu
DS-2CD1321G2-LIU(F)
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 2 MP resolution. Support Human Detection. Efficient H.265+ compression technology. Smart Hybrid Light: advanced technology with long range coverage. Built-in microphone for real-time audio security. Water and dust resistant (IP67)

Teknik özellikler

Image Sensor 1/2.9" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118° 4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°
Lens Mount M12
Iris Type Fixed
Aperture F2.2
DORI 2.8 mm, D: 48 m, O: 19 m, R: 9 m, I: 4 m 4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m
Supplement Light Type IR,White Light
Supplement Light Range IR: up to 20 m White Light: up to 15 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G (-F model supports)),ISAPI,SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP,NTP, IGMP, IPv4, IPv6, UDP, QoS
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client iVMS-4200,Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Privacy Mask 1 programmable polygon privacy mask
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage -F model: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes,1 built-in microphone
Reset Key -F model supports
Basic Event Motion detection (support alarm triggering by specified target type (human)), exception
Linkage Upload to memory card (-F model supports), send email, notify surveillance center, trigger recording (-F model supports), trigger capture
Power 12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material Plastic
Dimension Ø109.9 mm × 103.6 mm (Ø4.3" × 4.1")
Package Dimension 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Weight Approx. 300 g (0.7 lb.)
With Package Weight Approx. 460 g (1.0 lb.)
Storage Conditions -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat,mirror,password protection,password reset via email
EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

Dokümanlar

Installation Guide - 2 MP Smart Hybrid Light Fixed Turret Network Camera Network Camera-V5.11.0_260714 Release_IPCE_RC_E9 - 2 MP Smart Hybrid Light Fixed Turret Network Camera
